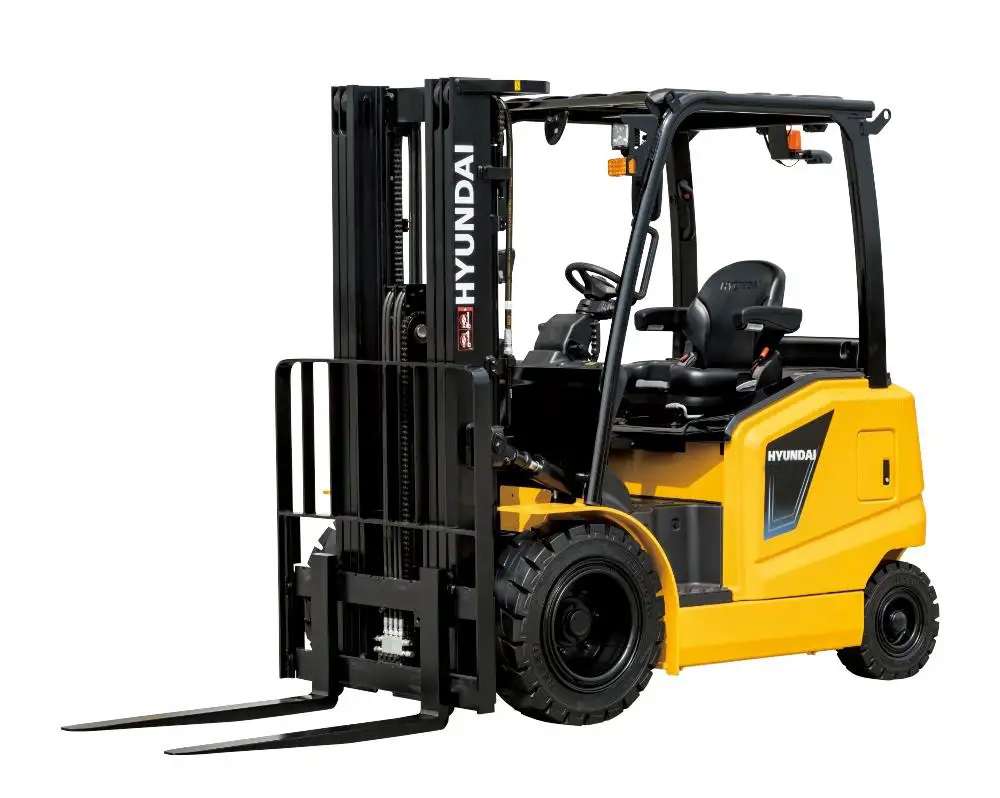

Hyundai 10, 15, 18 & 25 forklift battery 2v cell replacement.
Replacement Hyundai 10, 15, 18 & 25 battery set, rechargeable forklift compatible 2v batteries at a low cost.
- Hyundai 10 2v cell battery replacement
- Hyundai 15 2v cell battery replacement
- Hyundai 18 2v cell battery replacement
- Hyundai 25 2v cell battery replacement
The Hyundai 10, 15, 18 & 25 are a range of Forklifts, they normally relate to 1, 1.5, 1.8 and 2.5 tonne lift capacities, they will have an extensive range of codes with different features and battery packs, so the easiest thing is to complete the quote request so we can get you the correct ones. Many of them will have a series of 2v cells that are connected together to output the correct voltage, so for 48v it will have at least 24 cells. The quote request form is laid out in an easy way for you to put the correct info in.
As stated, Hyundai 10, 15, 18 & 25 Forklift generally have a set of 24 2v cells to power the device and output the required 48v, but these can come in a variety of formats, and higher or lower voltages, so the best way to price the replacements is to collect some basic information and quote a replacement.
Get a Quote: Hyundai 10, 15, 18 & 25 2v batteries
Use the "get a Quote" button above. This will ask you for your name and email address, plus quick pictures of the Hyundai 10, 15, 18 & 25 forklift battery cells, the technical information badge on the cell tank, and confirmation of the make and model.
With this information, we should be able to offer a bespoke price for your Hyundai 10, 15, 18 & 25 forklift, which we will email to you within 1 working day for you to decide whether you want to take us up on it. Works are normally commenced within a few days.
We will advise whether the Hyundai 10, 15, 18 & 25 forklift cells are supplied only or installed by our engineers at your location. There might also be a discount if we can take the old cells away for recycling, which could potentially be almost enough to cover the fitting cost.
The Hyundai 10, 15, 18 & 25 forklift often comes with the following battery set codes, among others:
8PZB400
VCD400
6PzS480
5PzS400
9DB450
VCD450
24-9PBS/450M
9PzB495
VSD9AC
VSDX450M
D-450/48V
VCD9AC
24-10PBS650
10DB650
10PZB650
VCE660
24-11DB715
11PZB715
11PBS715
VCEH715.
The unit's voltage is normally 48v; but we have seen other layouts, there will be 24 2v cells in the tanks.
Probably have a battery with an amp-hour capacity between 400 and 715h. We may be able to offer alternative specifications, which will be outlined in the quotation.
The size of the Hyundai 10, 15, 18 & 25 battery tank (that holds the 2v cells) is normally:
length =980 or 1066mm
Width = 710 or 796mm
height = 487 or 537mm.
But it could be different, that's why we collect the information first for quotation.
