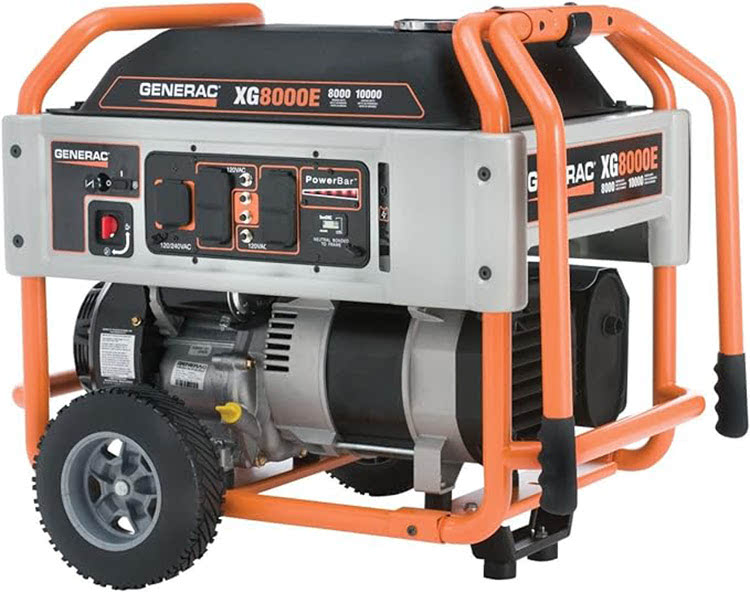

Generac XG7000E XG8000E generator battery 12v.
Compatible replacement Generac XG7000E XG8000E generator 12v battery with upright nut and bolt terminal.

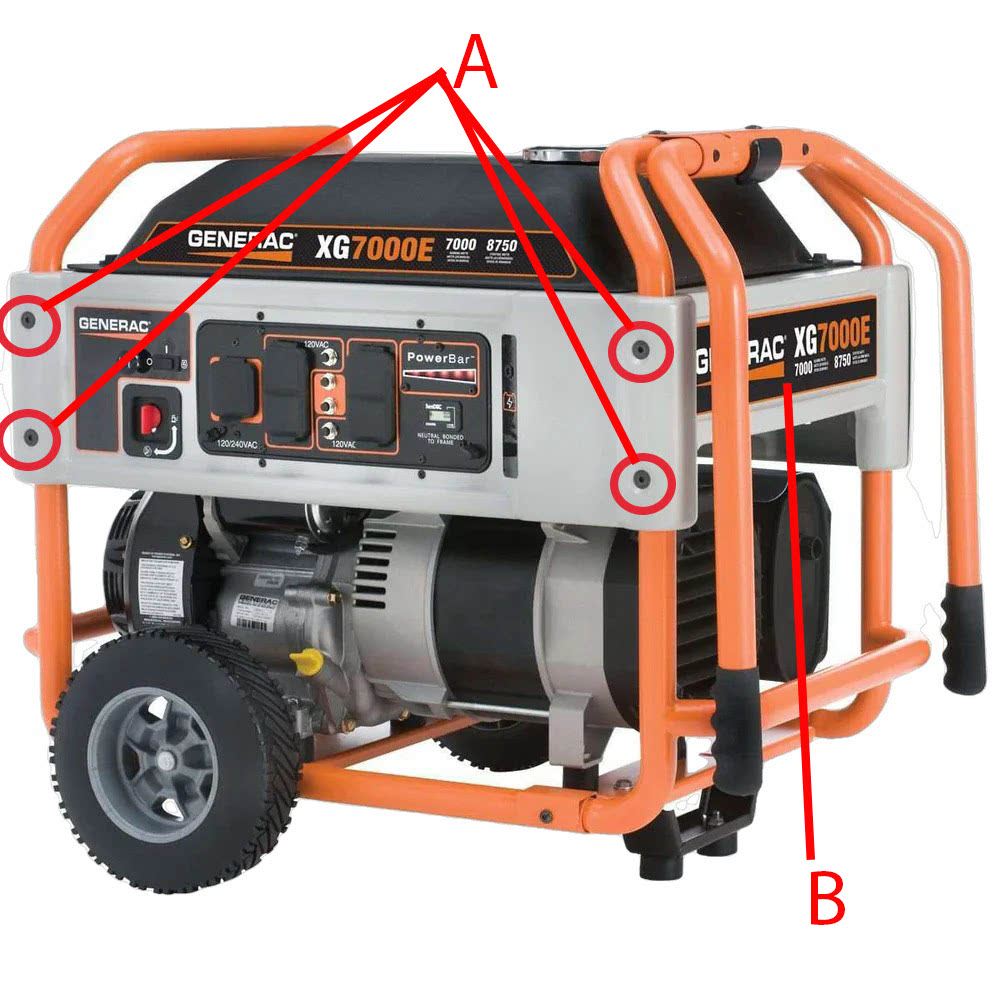

The battery on these generators is mounted on its side behind the end panel. You may just be able to get behind the panel to change the battery, but it is tight, might be easier to undo the screws marked as "A" in one of the pictures above, the battery is behind panel "B".
The battery itself has the required upright flag terminals for fitting.
The battery for the Generac XG7000E XG8000E is not difficult to fit, but it can take some time because of where it is positioned; this and the fact the type of terminal and shape of the battery is a bit of a rarity means looking after it is essential. Charge it fully when it arrives and first use, in general use the genertaor will charge the battery if its run for a resobale period every few days. If there are long periods when it's not being run, then recharge every six weeks to keep the cells in good order.
- Generac XG7000E battery
- Generac XG8000E battery
Typically, this Generac XG7000E XG8000E replacement battery will take about ten uses and associated charges before reaching a full capacity charge; this is quite normal; you may not even notice it's doing it.
Voltage = 12v
Capacity = 8.8Ah @20Hr
Chemistry = AGM, VRLA
The dimensions of this Generac XG7000E XG8000E battery replacement are as follows:
Length – 151mm
Width – 65mm
Height—94 mm, 106mm with the terminals. It is fitted with an M5 bolt hole and will be supplied with new nuts and bolts.
