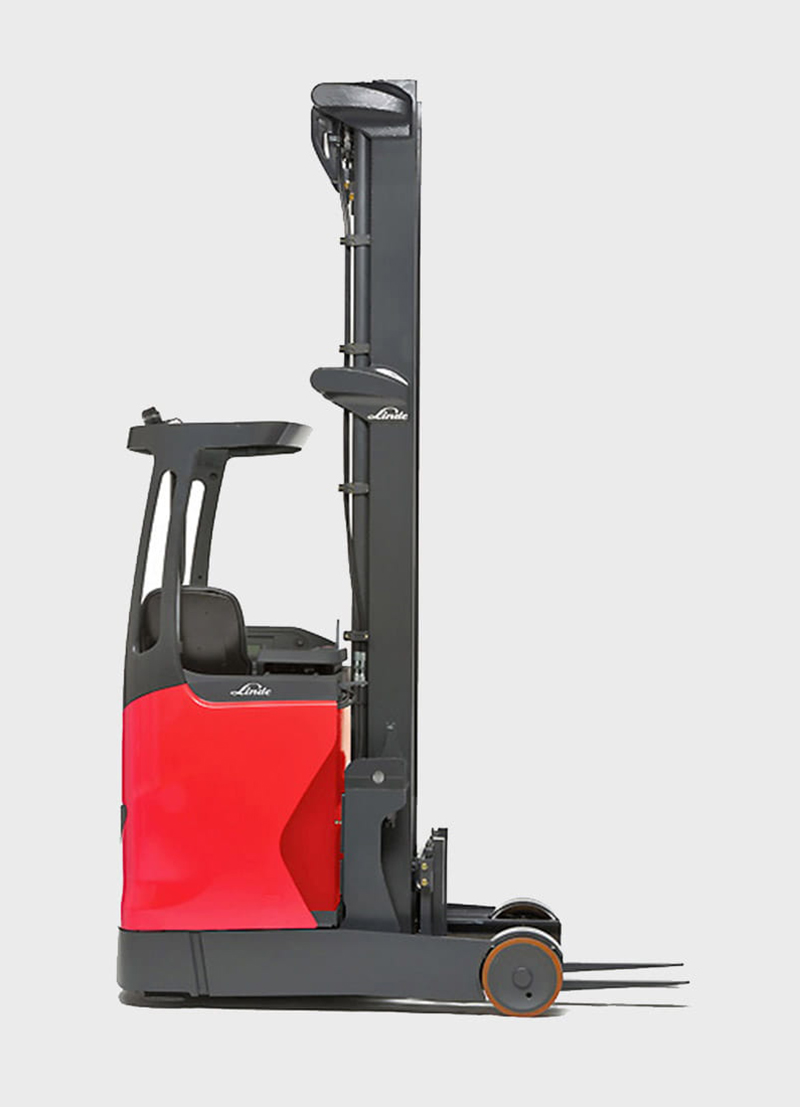

Linde R16 R16N R16S R18 battery Reach Truck.
Replacement R16, R16N, R16S & R18 battery set, rechargeable electric Reach Truck compatible batteries at a low cost.
- Linde R16 Reach Truck battery replacement
- Linde R16N Reach Truck battery replacement
- Linde R16S Reach Truck battery replacement
Linde R18 Reach Truck battery replacement
The Linde R16, R16N, R16S or R18 electric Reach Trucks are used primarily in narrow aisles and at various heights, where they excel. The R16 have a lift load capacity of 1.6 tonnes and can travel at 14 Km/h.
Because the R16, R16N, R16S & R18 electric Reach Trucks can have many optional extras, it is important to properly match the replacement batteries to the originals fitted. For this reason, to price the replacement batteries, we would need further information to best assist you.
Use the "get a Quote" button above. This will ask you for your name and email address, plus quick pictures of the R16, R16N, R16S & R18 Reach truck cells, the technical information badge on the cell tank, and confirmation of the make and model.
With this information, we should be able to offer a bespoke price for your R16, R16N, R16S & R18 electric reach truck, which we will email to you within 1 working day for you to decide whether you want to take us up on it. Works are normally commenced within a few days.
We will advise whether the R16, R16N, R16S & R18 electric Reach Truck cells are supplied only or installed by our engineers at your location. There might also be a discount if we can take the old cells away for recycling, which would be almost enough to cover the fitting cost.
The R16, R16N, R16S & R18 electric Reach Trucks often comes with the following battery set codes, among others:
2PzS310/48V
48V/4HPzS600
4PzS560L
48V/3HPzS450
D-420/48V
5PzS775
3PzS420L
5PzS700
24-4PZS560
24-D-700/48V.
The unit's voltage is normally 48v, there should be 24 2v cells in the tank.
Probably have a battery with an amp-hour capacity between 420 and 775Ah. We may be able to offer alternative specifications, which will be outlined in the quotation.
The size of the R16, R16N, R16S or R18 electric reach truck battery tank is normally:
length =1220 or 1032mm
Width = 280, 440, 350 or 424mm
height = 784mm.
