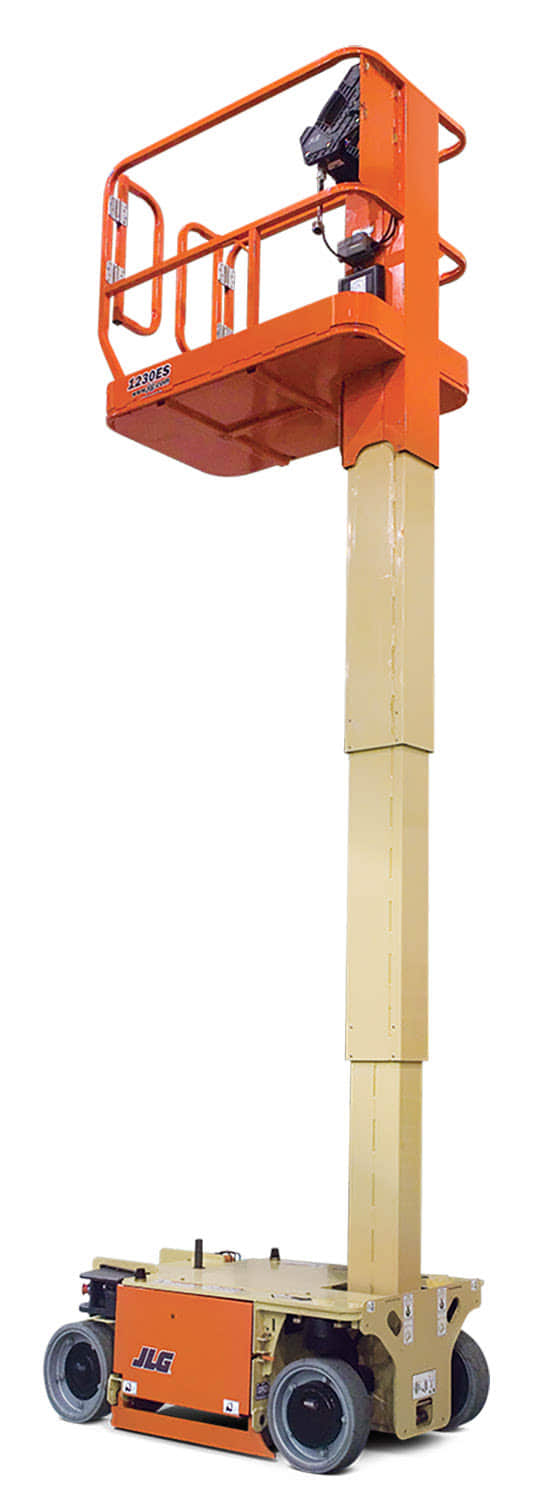

JLG 1230ES Vertical Mast Lift full battery replacement.
Complete set of four premium grade batteries compatible with JLG 1230ES industrial Vertical Mast Lift with AGM upgrade option offered.
The JLG 1230ES is a compact and versatile electric scissor lift, specifically designed to offer optimal manoeuvrability in tight indoor spaces. This model is ideal for facilities maintenance, installation work, and tasks within confined areas such as office buildings, shopping centres, and warehouses. Its relatively small footprint and low floor loading are key features that make it a preferred choice for locations with sensitive flooring, ensuring minimal disruption and maximum efficiency during operations.
This model is equipped with a set of four, six volt flooded lead-acid battery combined to create a 24v system, renowned for its reliable performance and easy maintenance. It provides sufficient power to enable the 1230ES to achieve a maximum platform height of approximately twelve feet, catering to various reach requirements while maintaining a stable and safe platform for operators. We are also able to offer sealed AGM batteries which require less maintenance.
- JLG 1230ES Vertical Mast Lift Battery
To maximize the battery life and ensure safety, regular maintenance such as cleaning the battery terminals to prevent corrosion, checking for secure connections, and ensuring the battery is charged after each use is recommended. It is also advisable to keep the battery in a charged state during storage periods to avoid deep discharge, which can irreversibly damage the battery cells.
Voltage = 6v
Capacity = 230Ah @100Hr, 210Ah @20 Hr
Chemistry = Flooded cell
Approx total weight = 104-kilos
This offer is for a total of four batteries required for the JLG 1230ES vertical mast lift. Dimensions of each are:
Length = 260mm or 10.23-inches
Width = 180mm or 7.09-inches
Height = 248mm or 9.76-inches
Total Height including terminals = 288mm or 11.4-inches.
