Emerson Liebert GXT2-6000RT230 battery replacement
Replacement Emerson Liebert GXT2-6000RT230 UPStation battery pack, rechargeable sealed batteries for this uninterruptible power supply.
The Liebert GXT2-6000RT230 UPStation is a 6000VA 4200-watt system with a rack height of 5U. It can be installed in a tower or rack mount configuration. This offer is for a set of twenty batteries for replacement, sealed and valve-regulated, so they can be used on their side without fear of spillage.
- Emerson Liebert GXT2-6000RT230 battery
The batteries are hot-swapped capable, but you should be careful as the load will be unprotected during the procedure. Plus, you are at risk of dealing with any electrical device, so please take a look at the manual before starting. Installing the batteries is quite simple. The bottom section of the front panel has a pair of retaining screws, one on either side. Loosen these to allow the panel to drop forward and then lift off. Once removed, you will be able to see the battery packs. Each battery pack is held in place with a couple of Phillips screws, undo these and the connector to slide the box out. You can then swap out the old batteries for new ones and replace them in reverse order.
This system is often used as a control UPS with one or more extended runtime cabinets, normally the GXT2-240VBATT, so we have included a link further below to those batteries.
I just wanted to let you know that there's no maintenance required.
Recyclable.
Not hazardous.
Chemistry of battery = VRLA, AGM, Pb, sealed lead
Voltage = 12v
Capacity = 5ah @20-Hr

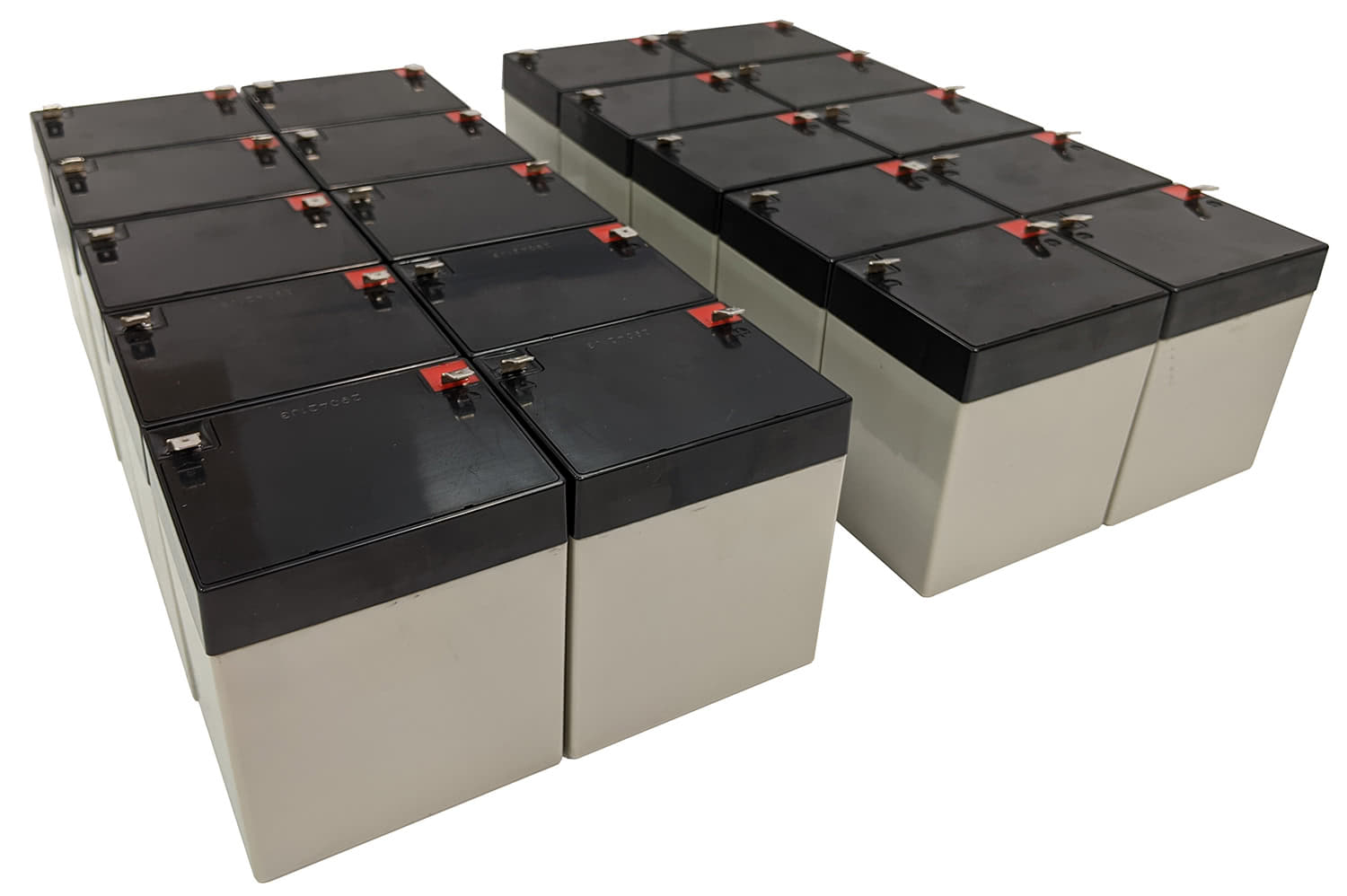

This pack has 20 batteries for the Emerson Liebert GXT2-6000RT230 UPStation UPS. The physical size of each one is as follows:
Length = 90mm
Width = 70mm
Height = 101mm
