Pride Revo 2.0 3 4 mobility scooter battery SC63 SC64.
Replacement Pride Revo-2.0, Revo-3 SC63 and Revo-4, SC64 battery pack contains two sealed batteries for this popular mobility scooter at a great price.
- Pride Revo scooter battery
- Pride Revo 2.0 scooter battery
- Pride Revo 3 scooter battery
- Pride Revo SC63 scooter battery
- Pride Revo 4 scooter battery
- Pride Revo SC64 scooter battery

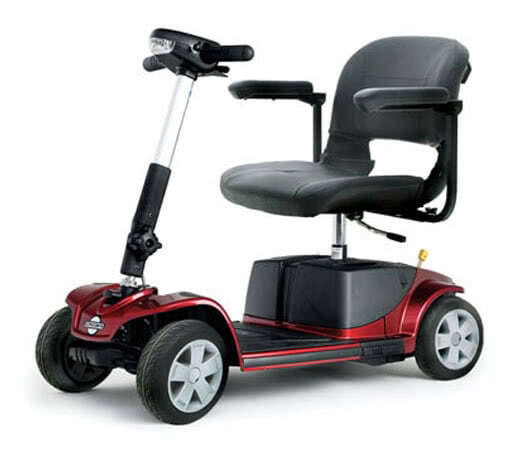

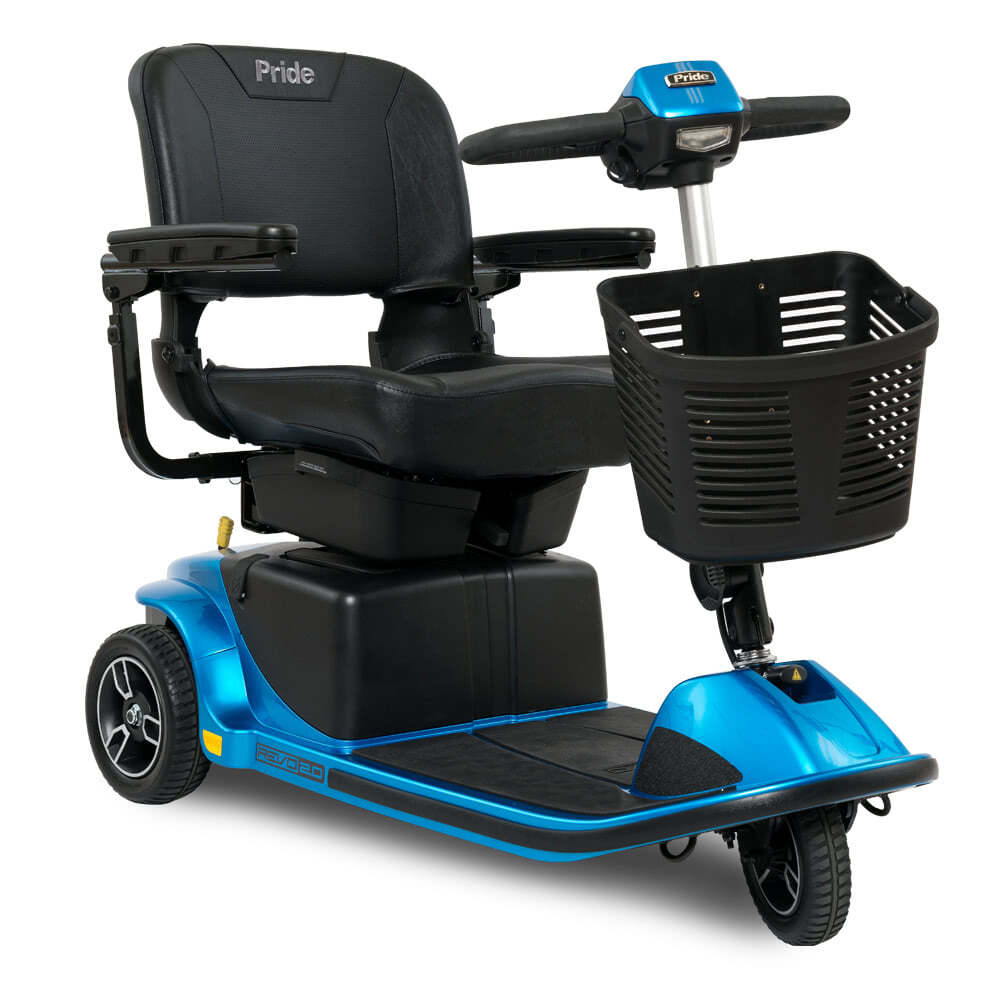

The pride Revo-3 is the three-wheeled version, and the Revo-4 is the four-wheeled version of this popular mobility scooter. They have the model numbers SC63 and SC64, respectively.

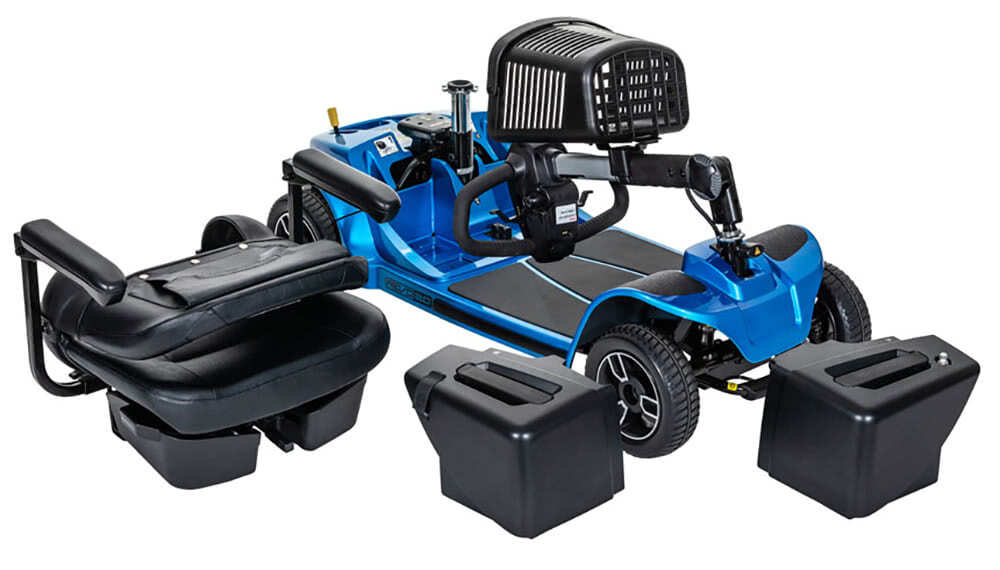

Both Pride Revo versions have full-size mobility scooter performance and facilities but pack in an easily transportable way, making this a highly sought-after model with loads of options. It has a powerful motor and oodles of battery energy with a range of up to 20 miles which is very good for any travel-designed scooter. It is easily broken down into five pieces, and the batteries, which are pretty heavy because of the distance they can cover, are split into two to make it more manageable.
This model has a battery indicator on the tiller, and you no doubt know you need to change them. It is pretty easy, take the battery packs off the scooter, always ensuring you remove the left-hand one first.

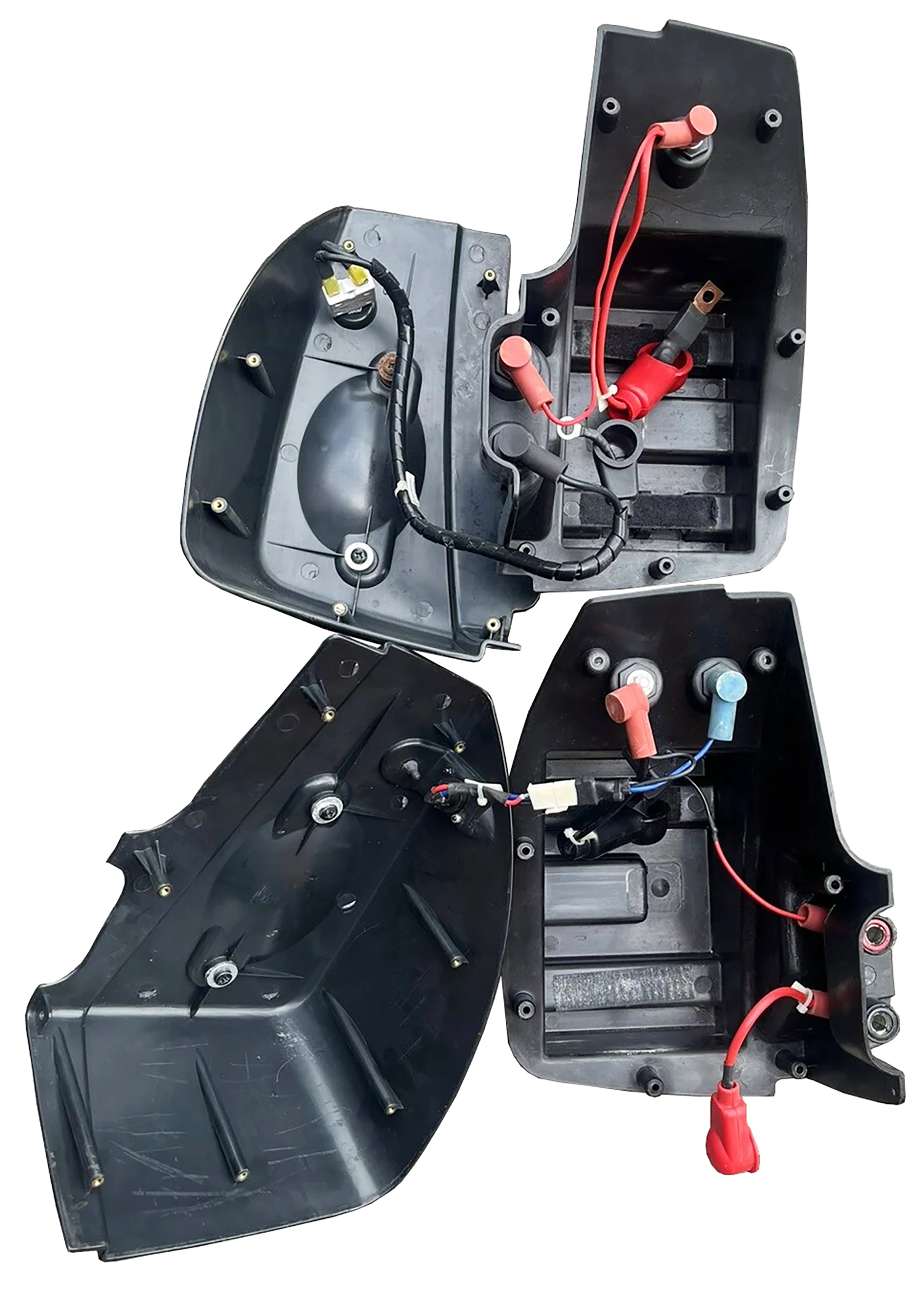

There are seven screws underneath, which will need removing. Doing this on a soft cloth or maybe a piece of cardboard might be better, so you do not scuff up the case. Then move the pack, so the handle faces upwards and slowly manoeuvre the cover off. At this stage, it may be better to lay the new battery in the same way so you can see where the cables will go after you take the old ones off. This will help you visualise it for when you put the new one in. Then when you are ready, swap the batteries over, be careful they are pretty heavy, replace the seven screws and you are done. Then do the same for the other side. You will wonder why you haven't done it before now because it is so easy.
The batteries are 12v combined on your scooter to supply 24v for your motor.
They are sealed and not hazardous. They will not leak if laid on their side, which is required so they can be put in the back of a car or other transport. Valve regulated AGM, safe for all public transport, although you should always tell your airline when booking.
Your old batteries are suitable for recycling and should be disposed of. They have high lead content, making them a very Eco-friendly form of power. You will find a recycling centre is very near you, on our recycle page are links to such a place.
For future charging of your new batteries, you should note that they are capable of many thousands of charges as long as it's only a slight discharge. The more you allow it to drain down, the fewer possible charges you will be able to achieve from the same batteries to put charge it after every use, do not try to run it down as much as you can before also charging if you are not using for long periods charge every six weeks, so the cells are fully charged.
There are two 12v batteries in this pack. They are VRLA, AGM sealed type.
The voltage of the battery: 12v
The capacity of the battery: is 34ah
there are two batteries in this set for the Pride Revo-3 and Revo-4 mobility scooters; the size of the individual batteries are as follows:
Length = 195mm
Width = 130mm
Height = 156mm
We are also able to offer 38ah batteries to replace these directly. These provide more miles per charge and the same physical size so that they will slip straight in. the link to these is just below, plus other easy upgrades in the available options above.
