QX12PA QR12PA battery replacement for portable PA system.
Battery replacement for QTX QX12PA QR12PA portable PA system used for speakers, rechargeable sealed AGM high quality batteries at low prices.
QTX are the manufacturers of portable PA systems, they have quite a large range of these types of systems but this battery is for the QX12PA and QR12PA in particular. While it may fit other systems in this range you should probably check what you currently have installed and compare with the specifications on this page. If they do not match then enter the model number of the battery into our search bar and you will find what you are looking for.
- QTX QX12PA system battery
- QTX QR12PA system battery
This compatible battery is known to fit the above PA sytems.
Please Note:
If you have the later version, often with the name code but is in fact the plus, then it takes a different battery, you will find a link to it in the alternatives tab, if you have any doubt perhaps look at the one you already have to compare the dimensions.
How to look after your new QTX QX12PA QR12PA battery
Your new battery will come more or less fully charged but upon delivery and before first use you should fully charge. Ideally, immediately after use you should charge until full and take off charge, never leave on for more than need be. If you are not going to be using your device for four weeks or so then give the battery a top up charge to keep the cells fresh for next use.
Environmentally Friendly
These batteries are sealed lead AGM and can be mounted on their side, making them (and your old ones) environmentally friendly and recyclable. When they reach the end of their useful life, please take them to your local recycling centre so that they can be transformed into something new and continue on their green journey.

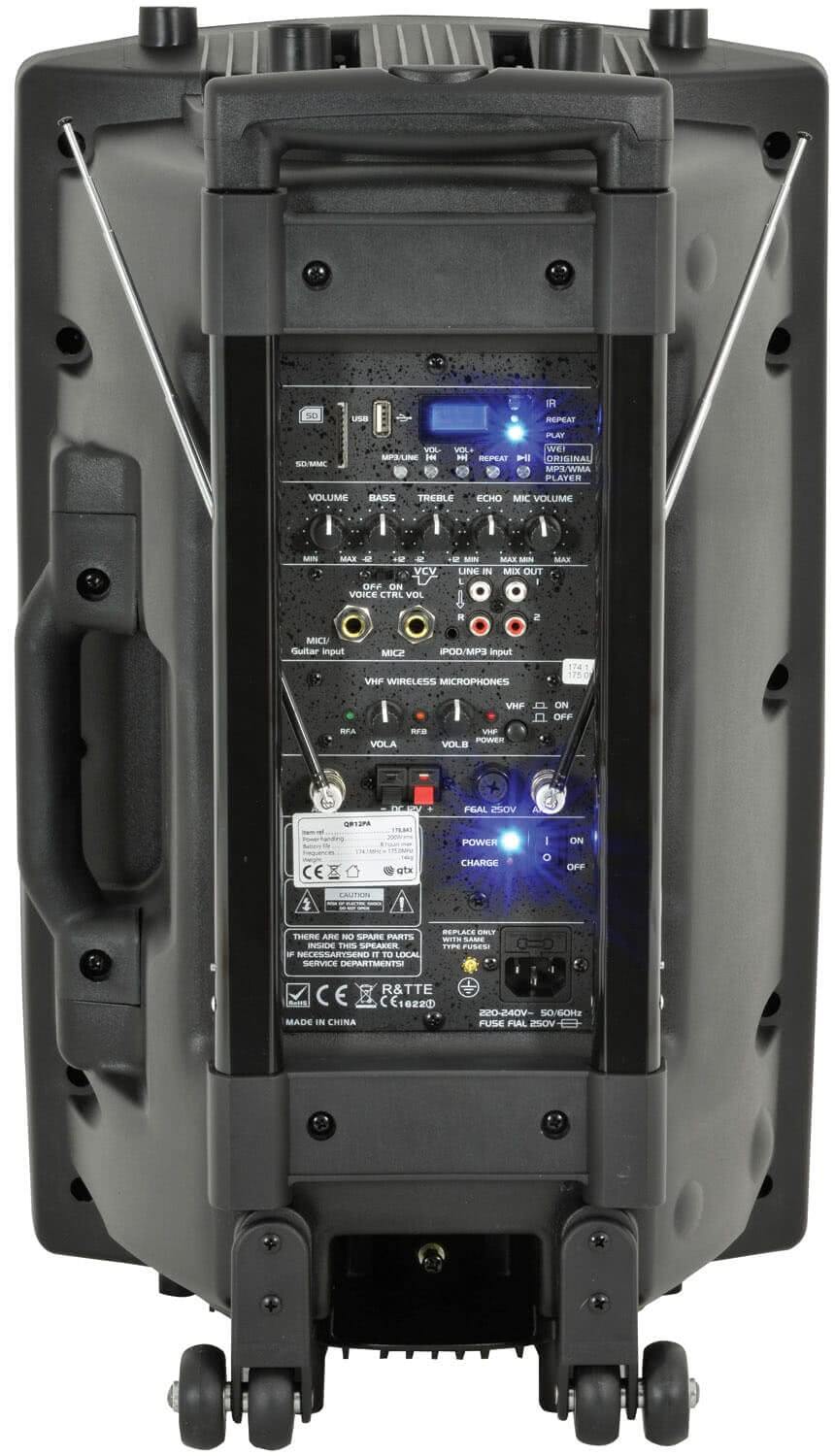

Installation: Fitting a new battery will take at least ten minutes, not difficult but a bit fiddly. First, remove the four screws holding on the handle on the back. This will give you more access to the screws holding on the back panel. Next, take out the screws holding on the back panel, there are at least ten of them, around the outside. Gently pull off the panel, there are a few cables but they are long enough to pull out of the way. You can then see the battery, it has two cables, red is for positive. The battery is held in place with two screws, with bolts on the back, there is access to get your fingers on them. Now the battery might seem like it is held in place, but it's just double-sided sticky tape, a firm pull will release it. Then just exchange the battery and reverse the order to put it back.
Battery type - VRLA, AGM, sealed lead acid - Non-spillable, not-hazardous.
Voltage = 12v
Capacity is 3.2Ah @20-hr
Approximate size of this replacement QTX QX12PA QR12PA battery is as follows:
Length = 134mm
Width = 67mm
Height = 61mm
0.187" 4.75mm fast-on terminals, flat push on terminals
