APC BE850G2-UK BE650G2-UK battery replacement AGM

Battery replacement for BE850G2-UK BE650G2-UK APC Back-UPS, rechargeable AGM sealed lead for easy install at low costs

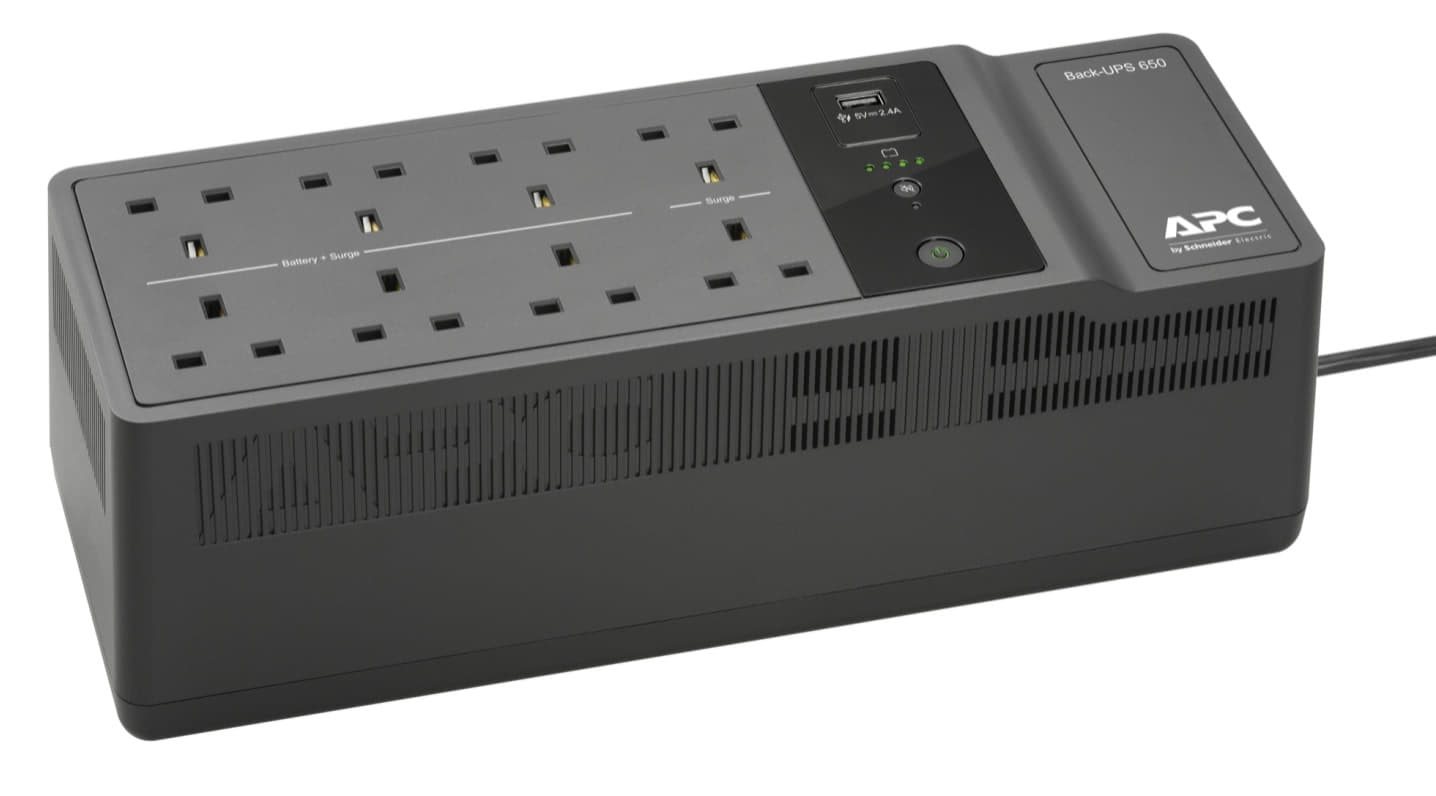

These two Back-UPS devices manufactured by APC are very popular and can be found throughout Europe in businesses and small homes alike. When power is interrupted or fluctuates beyond expected levels, APC Electric's Back-UPS instantly provide clean battery power to your sensitive electronics. In the case of a complete power cut, this will give you enough time to save documents and shut down the computer or any device connected to it without causing damage or immediate power shortage. It is also often used to run routers and modems. It has a total of eight outlets with a mixture of battery backup and surge protection. It also has a USB port for your smartphones and similar devices.

• APC BE850G2-UK battery
• APC BE650G2-UK battery

The compatible battery supplied is AGM and sealed with T2 terminals as required.

BE850G2-UK BE650G2-UK Installation and user guide
As this battery is maintenance-free and AGM type it is safe to be installed on its side as required by the UPS unit. We have attached the user guide to the downloads tab on this page for more detailed information but replacing the battery is not difficult. First of all, flip the UPS upside down and press the battery compartment cover to release the tabs then side the battery cover off. Remove the old battery just enough so you can take off the wires. Put the new battery in its place and connect the wires to it. Reinstall the battery compartment cover. Be sure that the release tabs lock into place.

Looking after BE850G2-UK BE650G2-UK
A reasonable battery life span is between two and five years, but this is unfortunately very dependent on the general conditions it is subjected to. Ensure there is plenty of ventilation around the device, do not cover the vents or place it next to a radiator, and do not use it as a bookshelf. If the batteries get too hot all the time it will shorten the life span, the higher the constant load applied, the harder it works, which directly relates to battery life.

Voltage: 12v
Capacity: 7ah @20 hr
Chemistry: VRLA, AGM, sealed lead

The battery is designed to fit snug in the machine, below are the dimensions so you can be sure it is correct
Length = 151mm
Width = 65mm
Height = 94mm

If you want to get the most from your UPS why not upgrade the battery to a 9ah version. It has the same dimensions and can replace the 7ah original without issue with the benefit of a longer runtime. This can be selected via the easy upgrade section.
