RBC163 battery BR1600SI BGM1500 BR1500MS Back-UPS Pro
Replacement RBC163 battery for BR1600SI BGM1500 BR1500MS APC Back-UPS Pro #163, pair of 12v rechargeable sealed batteries for easy replace module
Uninterruptable power supply machines are becoming ever more important in the modern world. Everything is online or digital and when the mains power fails or an electrical surge occurs it could down the stream, lose or corrupt important data or complete delete that whole excel spreadsheet you have been working on for hours. UPS machines provide emergency immediate backup power to whatever is plugged into which gives you enough time to shut things down properly before all power goes out or the mains come back online.

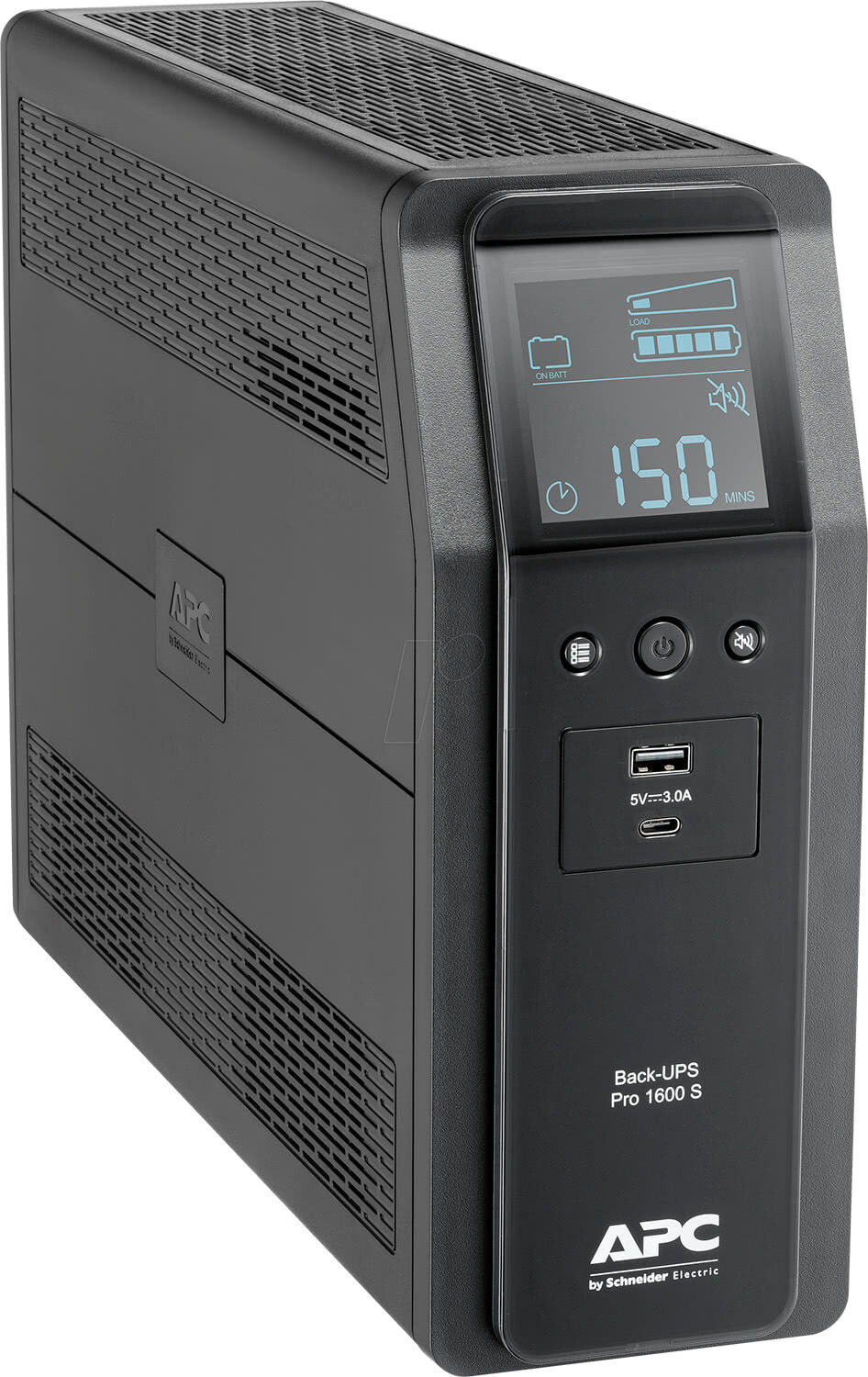

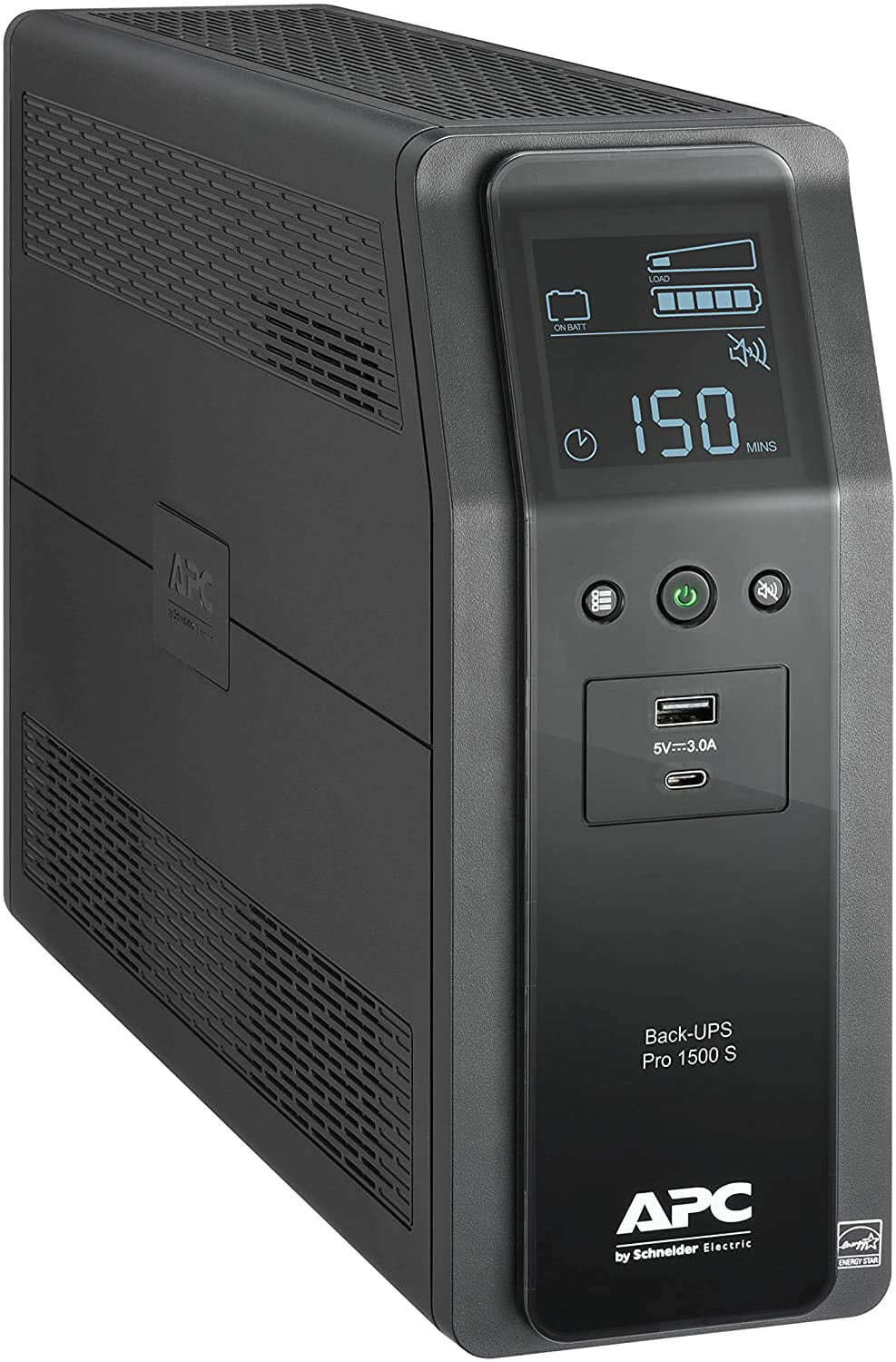

This selection of UPS devices is a little unique, we have the high performance and customer favourite BR1600SI UPS for premium power protection. The RBC163 however also is required for the new UPS dedicated to the gaming world. The BGM1500, BGM1500B, BR1500MS and BR1500MS2 is a very pretty looking UPS with fancy lights to inform you how the machine is doing. It comes with a whole host of other features like USB charging ports, multifunction LCD status and control console and plenty of plugs for screens, computers, streaming equipment etc.
- APC Back-UPS BR1600SI battery
- APC Back-UPS BGM1500 battery
- APC Back-UPS BGM1500B battery
- APC Back-UPS BR1500MS battery
- APC Back-UPS BR1500MS2 battery
- RBC163 battery
- APCRBC163 battery
There are two batteries in this set as would be required to be fitted in the mentioned units.
Maintenance advice for RBC163 battery pack installed into a BR1600SI, BGM1500 and BR1500MS
The expected life span of these types of batteries is 3-5 years, according to APC. A dust-free climate-controlled room would be ideal, but not everyone has one, particularly with such a small battery pack. Rather, make an effort to keep the vents clean; dust frequently accumulates around them. In addition, we recommend using less than 40% load and running without any load after installation whenever possible.
Installation and user guide
Replacing the pair of batteries in this UPS is a simple task that most people can handle. To begin, ensure that nothing is plugged into the UPS and that all wires are disconnected. Place the UPS on its side and slide the battery door down first by pressing the tabs downwards and pull the battery door away from the unit to access. Using the handles life the battery pack up to expose the battery connector and unplug it. Take the old batteries out, replace with the new ones and connect them up and then slide the new batteries into the unit. We have attached the user guide for you to download, which contains more information on this.
Environmentally Friendly
They are recyclable because the main component of these batteries is lead or Pb, which can be easily converted into another product. They are typically designed to fit into systems that include energy-saving features that benefit the environment as well. Once they have served their purpose (including the batteries you are taking out of the UPS), please direct them to your local recycling centre.
Voltage: 12v per battery
Capacity 7Ah @20 hr
Chemistry: AGM, Sealed Lead, Pb
Terminals: T2 Spade - 6.35mm
Dimensions of the replacement RBC163, BR1600SI, BGM1500 and BR1500MS battery are:
Length - 151mm
Width - 65mm
Height - 94mm
