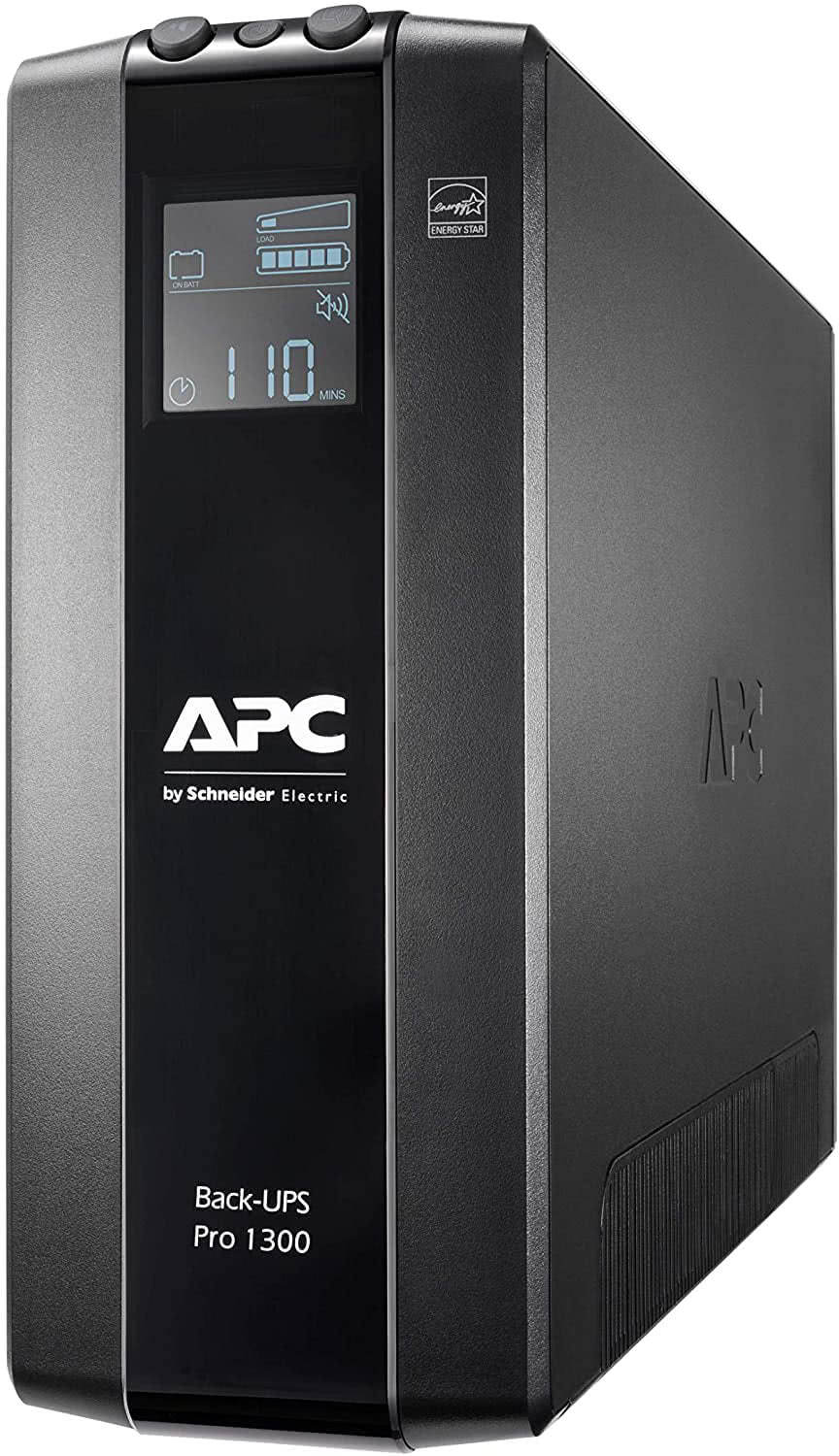

RBC165 battery replacement for BR1300MI Back-UPS Pro
Replacement RBC165 compatible battery for BR1300MI APC Back-UPS APCRBC165 #165, pair of 12v rechargeable sealed batteries for self user replace at low cost
Uninterruptible power supply machines are becoming increasingly important in today's world. Everything is online or digital, and if the power goes out or an electrical surge occurs, it could disrupt the flow, cause important data to be lost or corrupted, or completely delete that excel spreadsheet you've been working on for hours. UPS machines provide emergency backup power to whatever is plugged into them, giving you enough time to properly shut down your equipment before the power goes out or the mains come back online.
- APC Back-UPS BR1300MI battery
- RBC165 battery
- APCRBC165 battery
There are two batteries in this set as will be required.
Maintenance advice for RBC165 battery pack installed into a BR1300MI
These high-quality replacement batteries are designed for use in Uninterruptible power supply devices and should last somewhere between two and five years, this correlates with what APC recommend. It varies so greatly as it all depends on how hard the batteries work and how they are maintained. The UPS has its own charging system so that’s a great start but there are a few things you can do to help. Firstly, after installation make sure to run the UPS without any load. Secondly, do not use the UPS as a table. Try to keep the vents clear and in a well-ventilated space. Larger UPS machines will have whole climate-controlled rooms dedicated to them. Lastly, where possible, try to keep the load less than 40%.
Installation and user guide
Replacing the pair of batteries in this UPS is a simple task that most people are capable of completing. To begin, make sure nothing is plugged into the UPS and that all wires are unplugged. The battery compartment can be accessed at the bottom of the UPS so tip the machine over so the door is visible. Slide the door up and remove the battery, paying close attention to where the wires go to not damage them. Remove these wires and put your old battery pack to one side. Connect your new batteries with the existing wires and carefully slide them into the UPS. Secure with the door and allow the UPS to run without any load so the batteries can get comfortable in their new surroundings. We have attached the user guide for you to download, which contains more information on this.
Environmentally Friendly
Sealed lead batteries, as it says in the name, have plenty of lead in them. This is what makes them heavy and it’s also what makes them recyclable. They can easily be converted into a different product if taken to the correct facility, your local recycling centre should have an area where you can take these. All of this also applies to the old batteries that you are replacing so please help to protect our planet.
Voltage: 12v per battery
Capacity 7Ah @20 hr
Chemistry: AGM, Sealed Lead, Pb
Terminals: T2 Spade - 6.35mm
Dimensions of the replacement RBC165 compatible battery to be installed into the BR1300MI UPS machine is:
Length - 151mm
Width - 65mm
Height - 94mm
