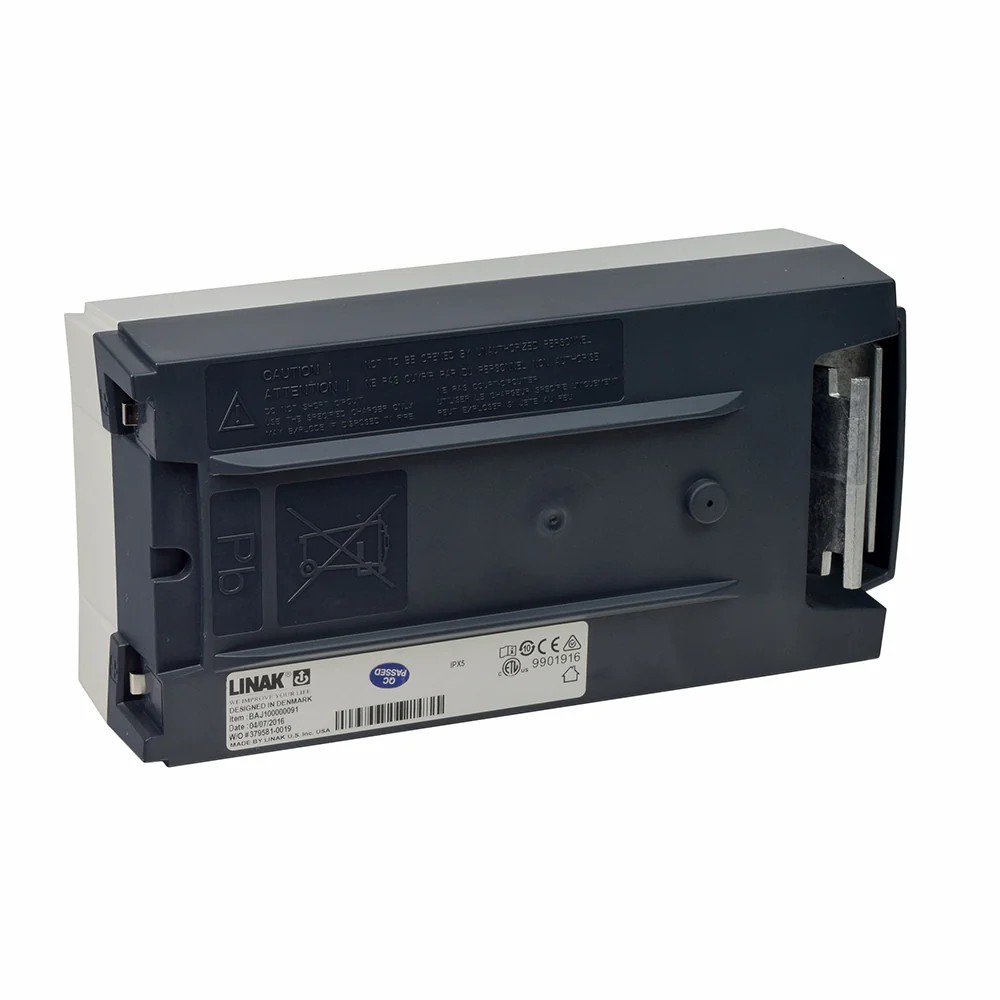

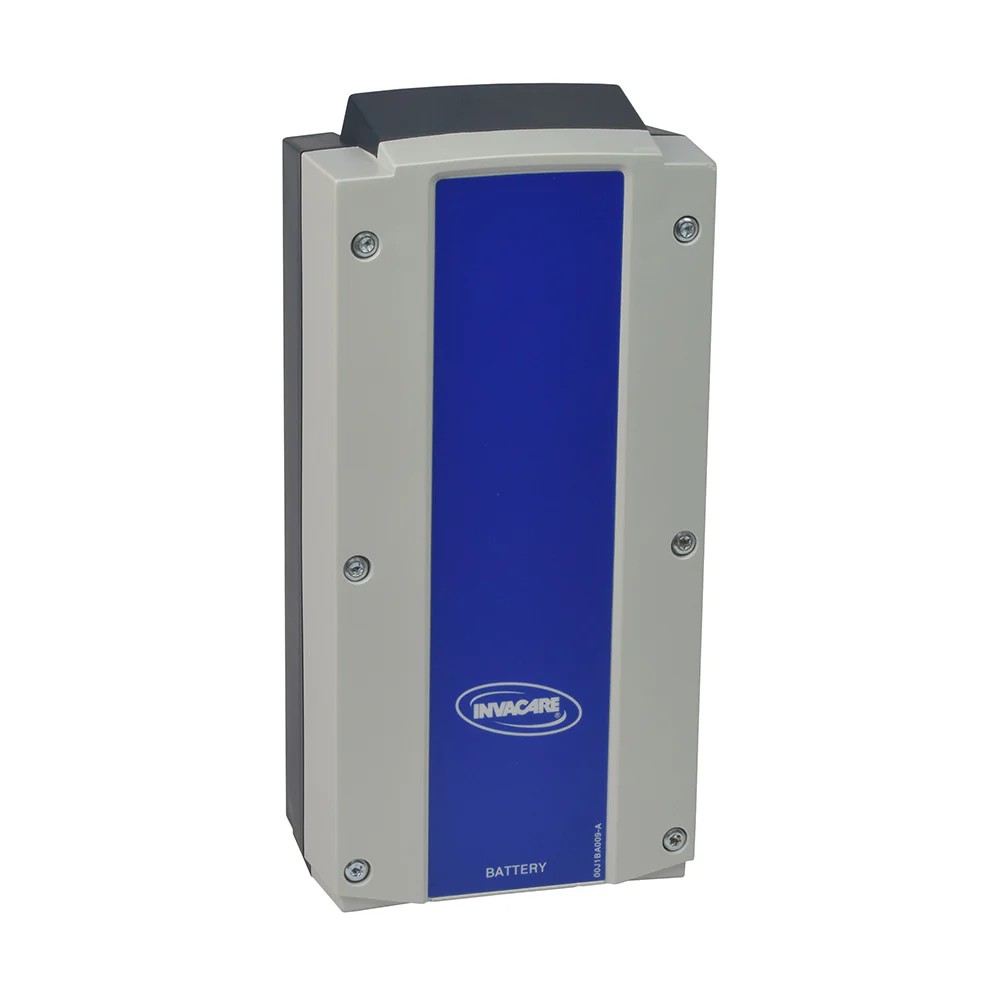

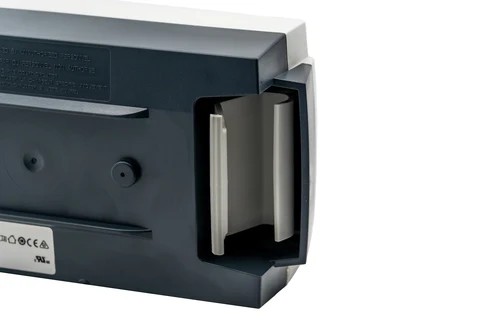

Invacare BAJ1-009 battery replacement.

Compatible BAJ1-009 battery pack, pair of 2.9ah batteries to give 24v for patient lifts by Invacare, do-it-yourself replacement at low costs.

Replacing the batteries yourself or via a friend will be a much cheaper and quicker way to bring the patient lift back online. To start with, put the battery box on a workbench or table and find a screwdriver. Sometimes these have a security head instead of a Phillips screw but most people these days will have something in their toolbox for this. If not, they are cheap pieces of equipment found in most supermarkets. Once you have undone these six screws, take off the cover and replace the batteries inside, swapping one cable at a time.

• Invacare BAJ1-009 battery replacement

It’s best to fully charge the newly fitted batteries in the pack before first use. To maximize their lifespan, charge them after every use. If only a tiny amount of energy is used, the batteries can withstand thousands of charge cycles. However, deeper discharges significantly reduce their longevity, so avoid letting them run too low. Never leave them in a discharged state; if they won’t be used for an extended period, recharge them monthly.

We also offer a service where you can send us your unopened battery pack, and we will replace the batteries. This can be selected from the available options above.

Voltage: 12v per battery (combine to make 24v)
Capacity 2.9ah @20 hr
Chemistry: SLA

Dimensions of each replacement battery in this pack of two are as follows:
Length: 78mm
Width: 55mm
Height: 97mm.
