Samson Expedition XP208w battery PA system replacement.

Battery replacement for Samson Expedition XP208w portable PA system: rechargeable, sealed, AGM high-quality batteries at low prices.

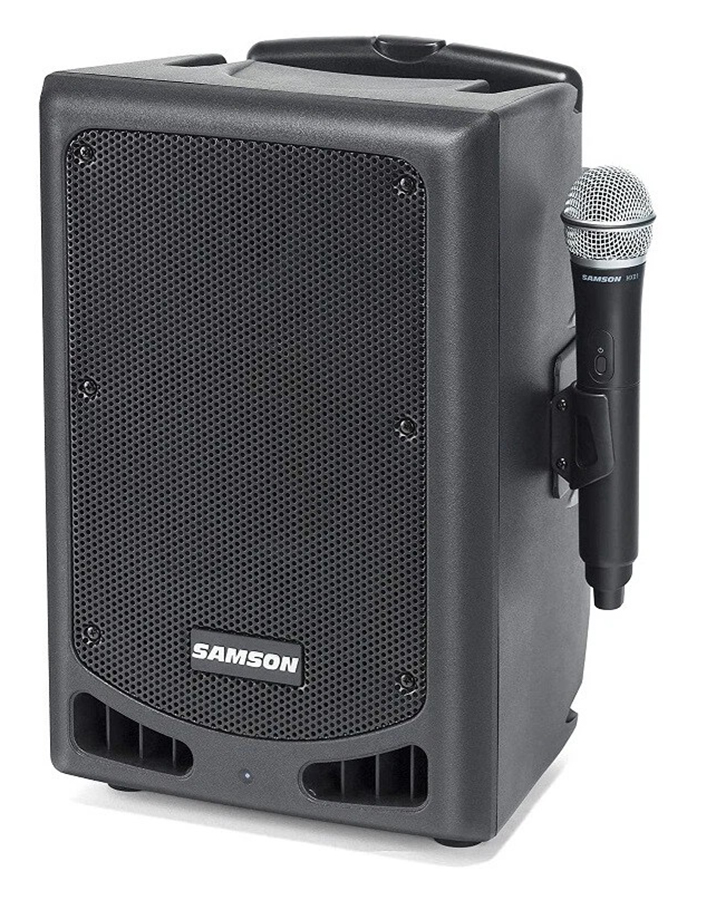

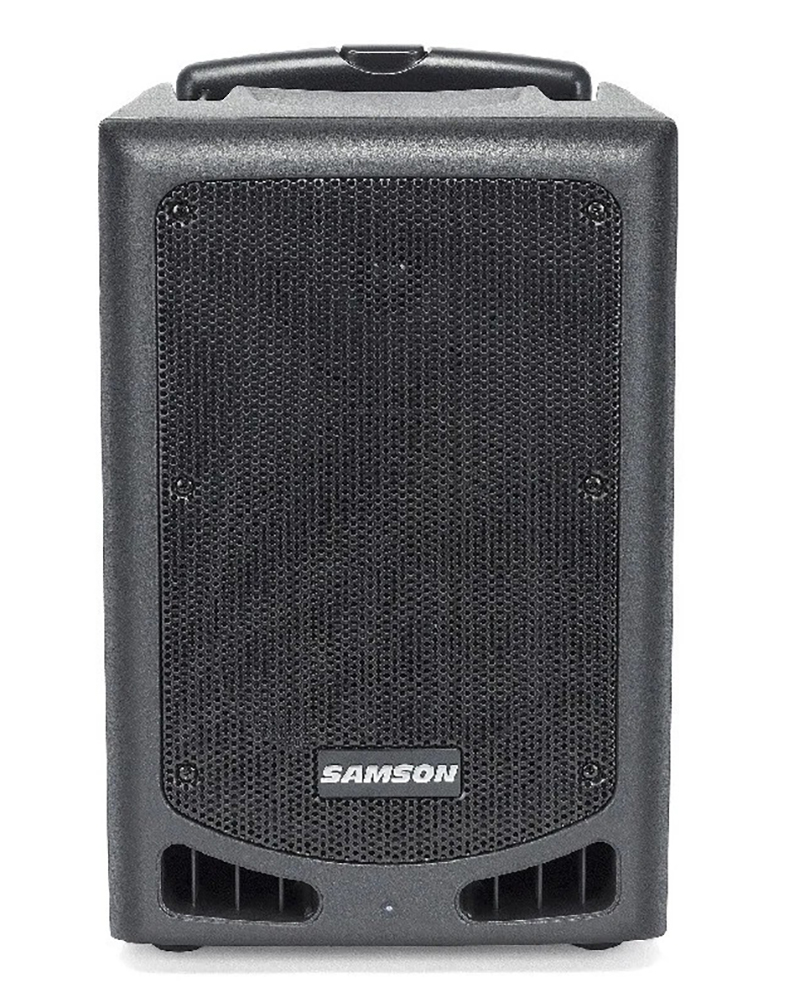

The Samson Expedition XP208w is a 200-watt portable PA system quoted in the manual as having 20 hours of operating time on battery power. This may be the case in perfect conditions, but of course, it will be less in normal use. The battery on this page certainly fits the ones we have tested, but, as with much of this kind of equipment, specifications can change; you should check its fit by comparing it to your old one before ordering.

• Samson Expedition XP208w battery

This compatible battery is known to fit the Samson Expedition XP208w PA systems.

How to look after your new Samson Expedition XP208w battery
Your new Samson Expedition XP208w battery will come more or less fully charged, but upon delivery and before first use, you should fully charge it. Ideally, immediately after use, charge until full and take off charge; never leave on longer than needed. If you are not going to use your device for 4 weeks or so, give the battery a top-up charge to keep the cells fresh for next use.

Environmentally Friendly
These Samson Expedition XP208w batteries are sealed lead-acid (SLA) AGM batteries and can be mounted on their side, making them (and your old ones) environmentally friendly and recyclable. When they reach the end of their useful life, please take them to your local recycling centre so that they can be transformed into something new and continue on their green journey.

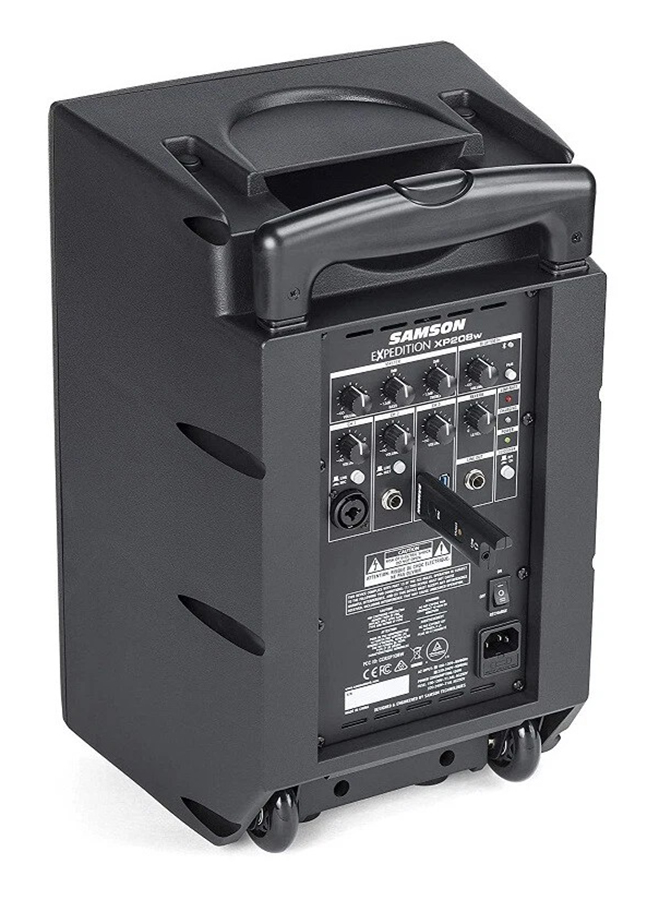

Installation: Fitting a new Samson Expedition XP208w battery will take at least ten minutes, not difficult but a bit fiddly. First, remove the four screws holding the handle on the back. This will give you more access to the screws holding the back panel. Next, remove the screws holding the back panel together along the outside. Gently pull off the panel. There are a few cables, but they are long enough to pull out of the way. You can then see the battery; it has two cables, red is for positive. The battery is held in place with two screws, with bolts on the back; you can get your fingers on them. Now the battery might seem like it is held in place, but it's just double-sided sticky tape; a firm pull will release it. Then just exchange the battery and reverse the order to put it back.

Battery type - VRLA, AGM, sealed lead acid - Non-spillable, non-hazardous.
Voltage = 12v
Capacity is 3.2Ah @20-hr.

Approximate size of this replacement Samson Expedition XP208w battery is as follows:
Length = 134mm
Width = 67mm
Height = 61mm
0.187" 4.75mm fast-on terminals, flat push-on terminals
