Linak BAL20001-02, 20006107 & CSA07033 battery replacement.
Replacement Linak BAL20001-02, 20006107 & CSA07033 battery, rechargeable, compatible with 20001-01 Liko & HillRom portable hoist batteries.
- Linak BAL20001-02 battery
- Linak 20006107 battery
- Linak CSA07033 battery

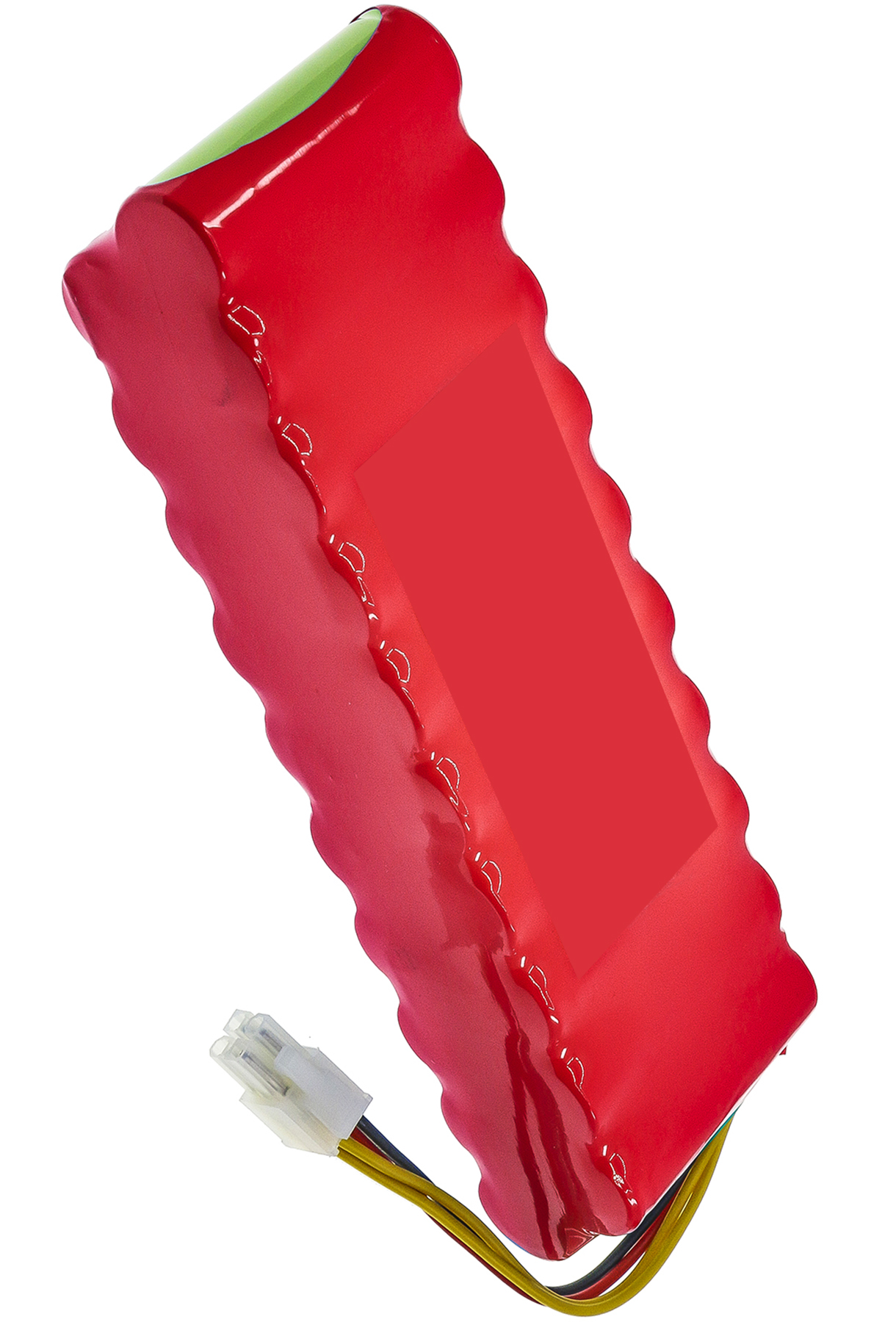

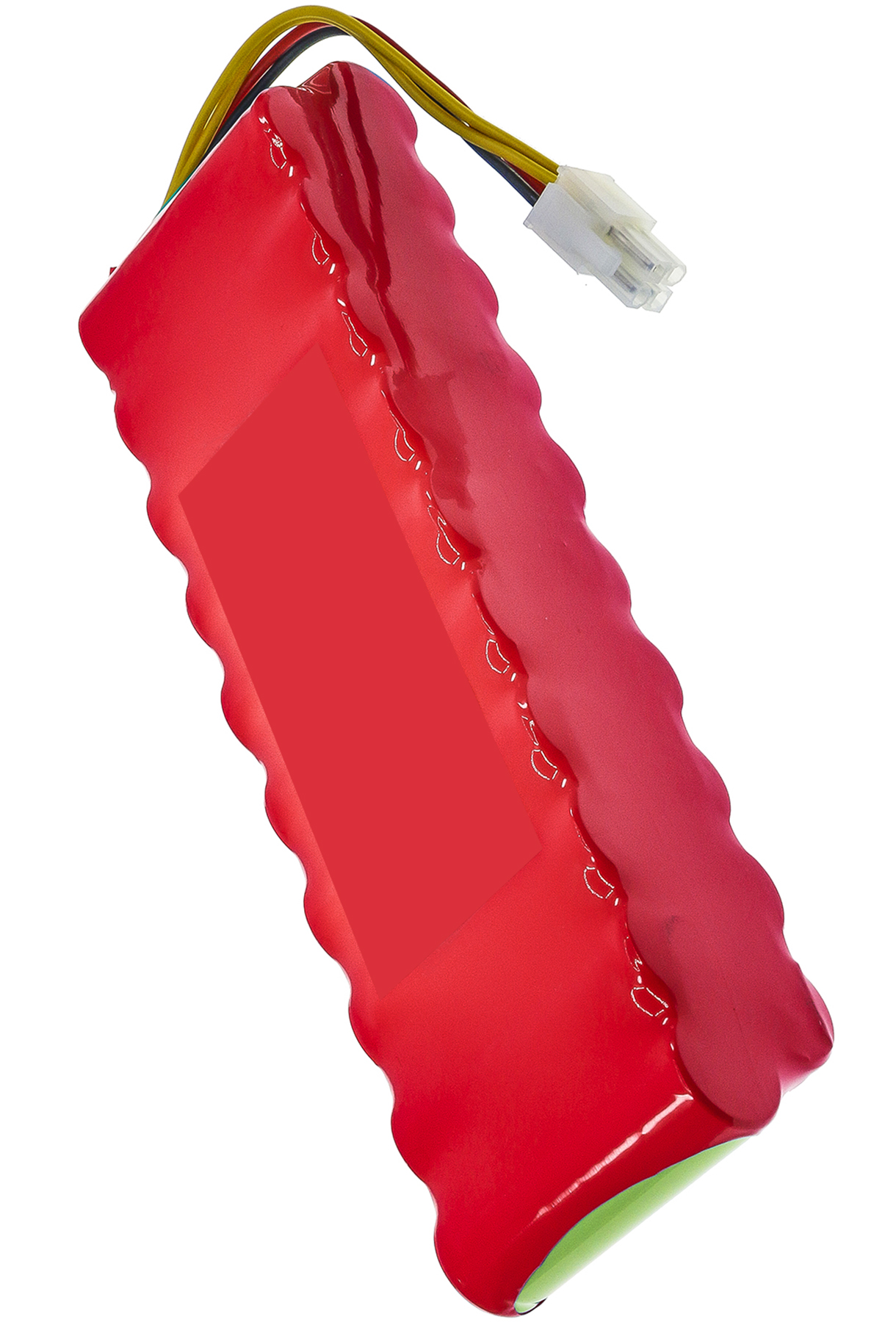

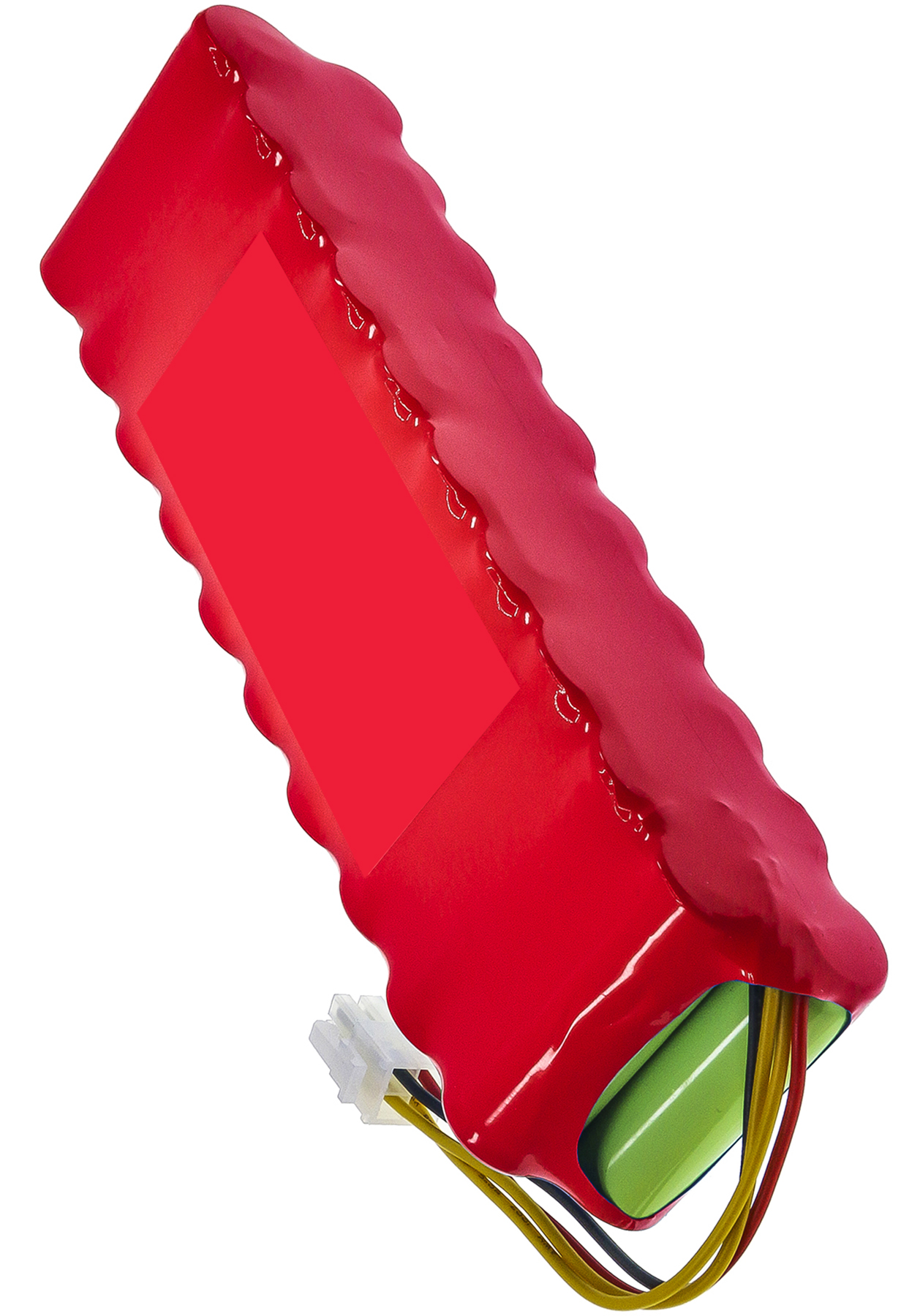

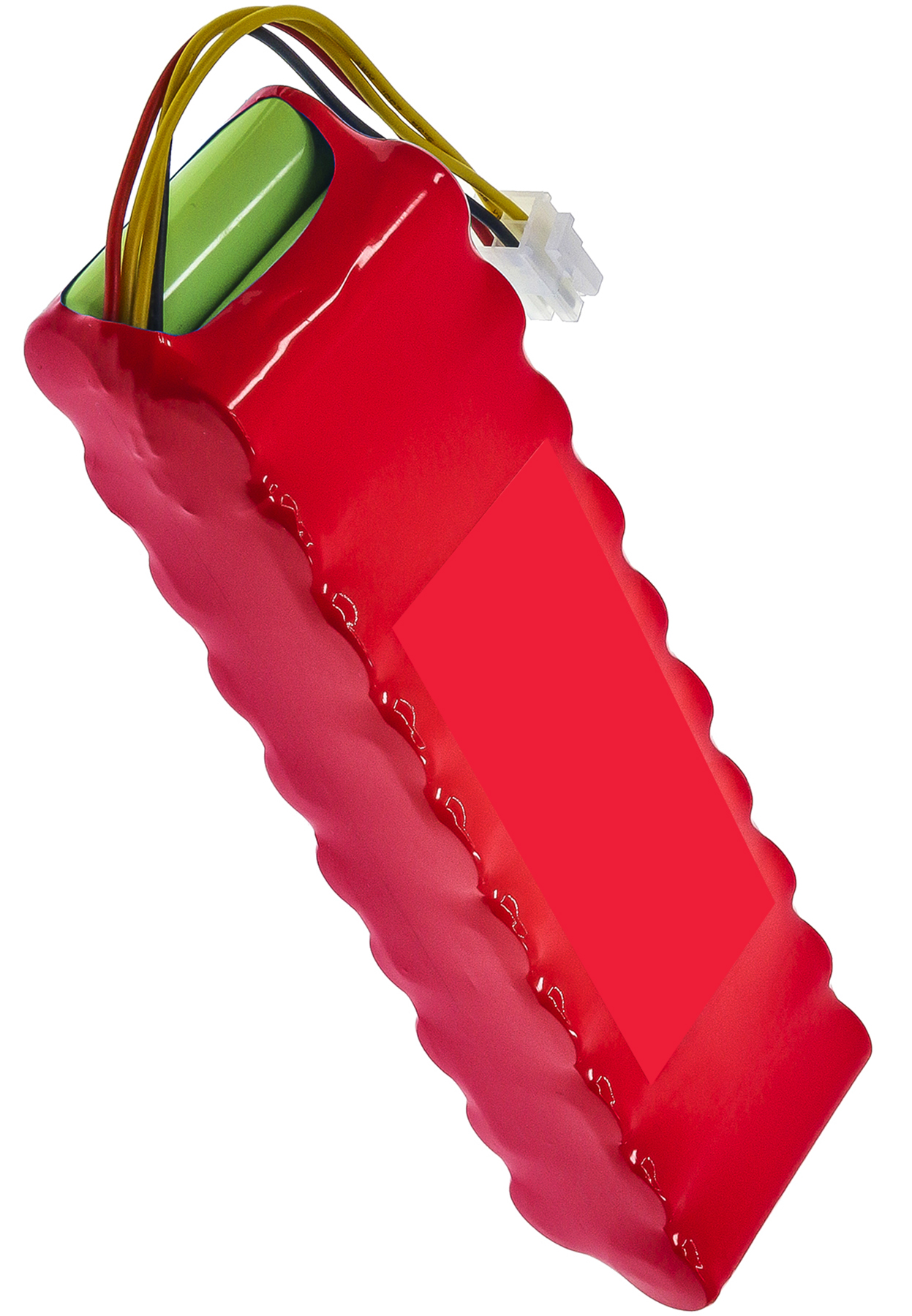

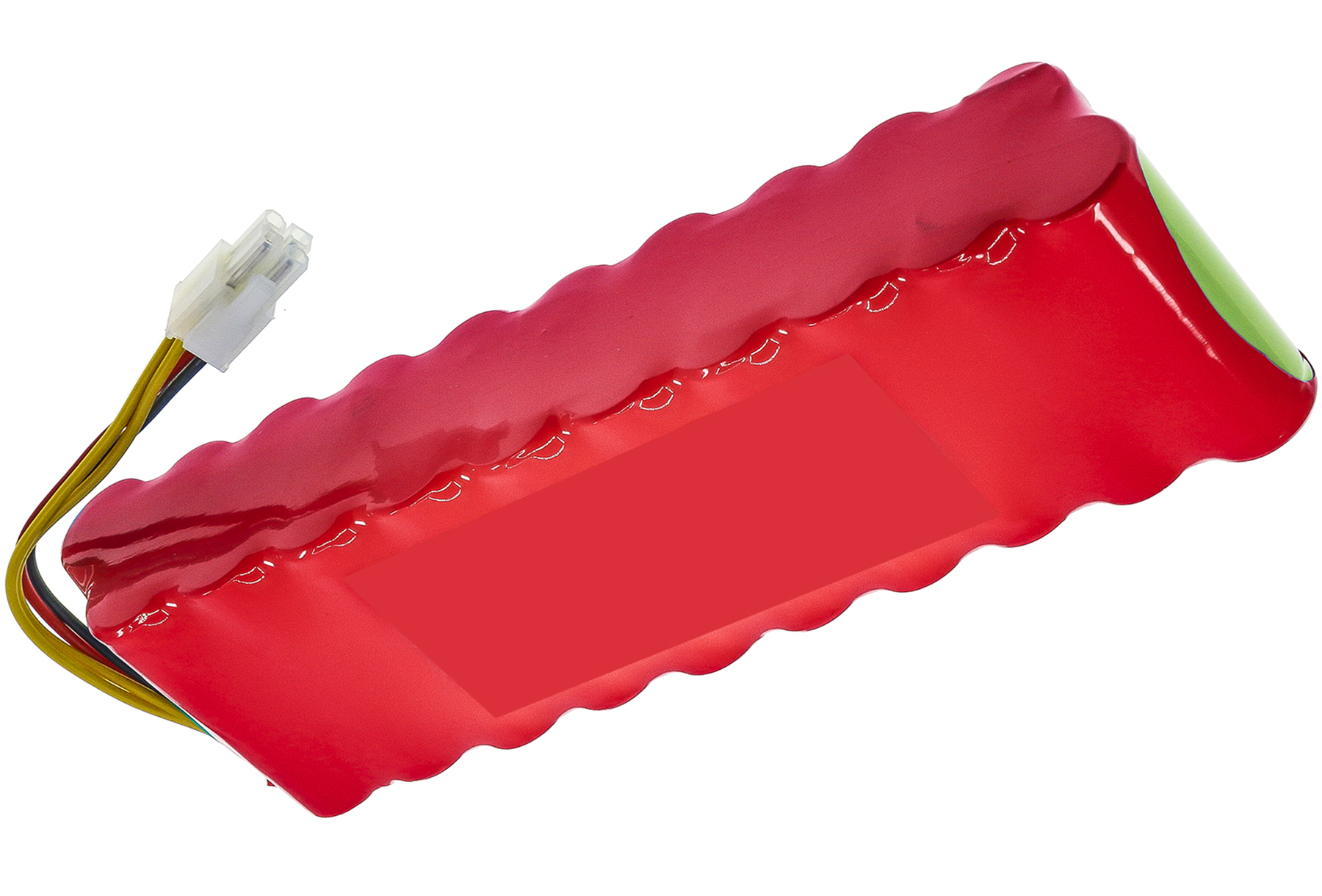

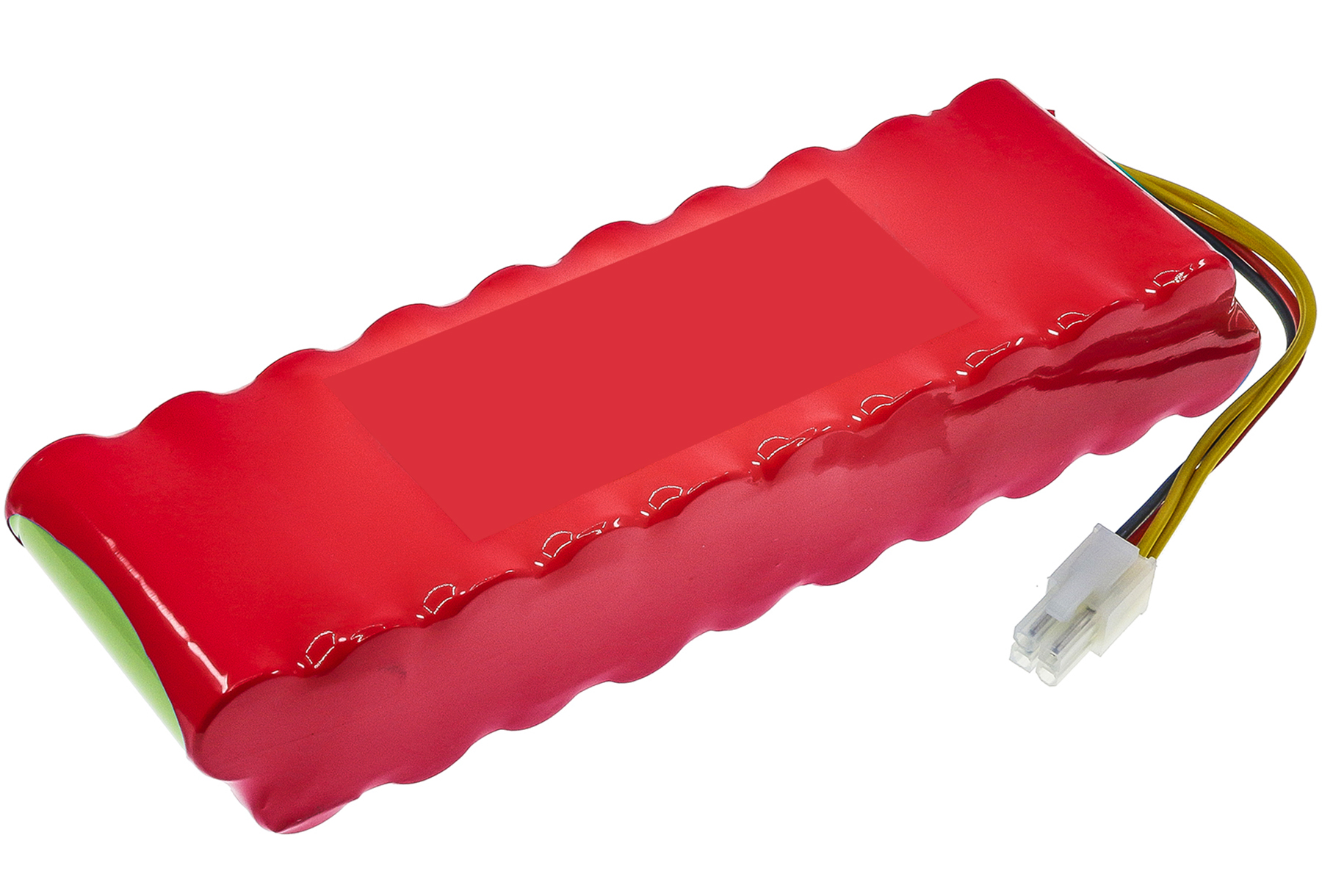

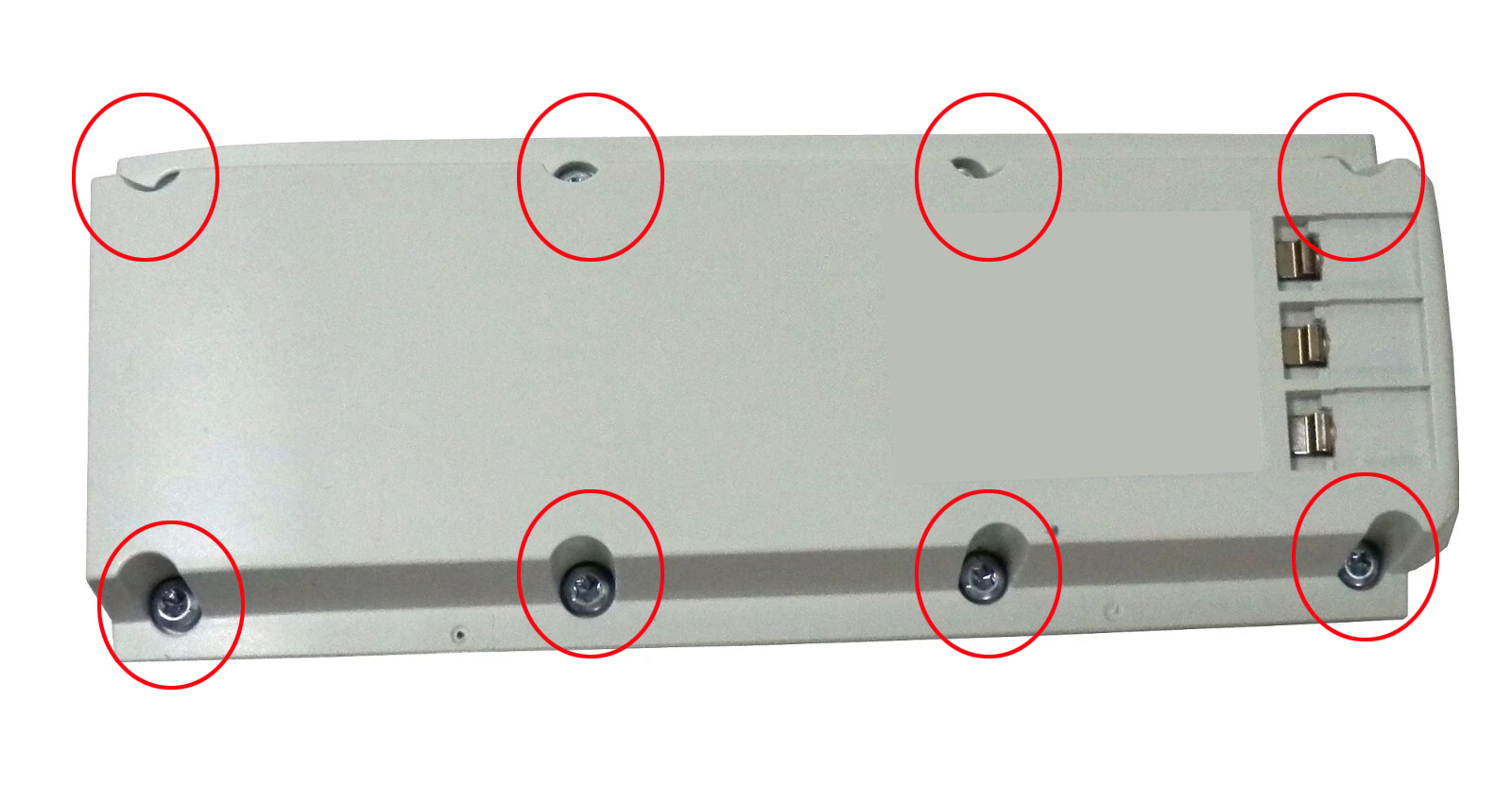

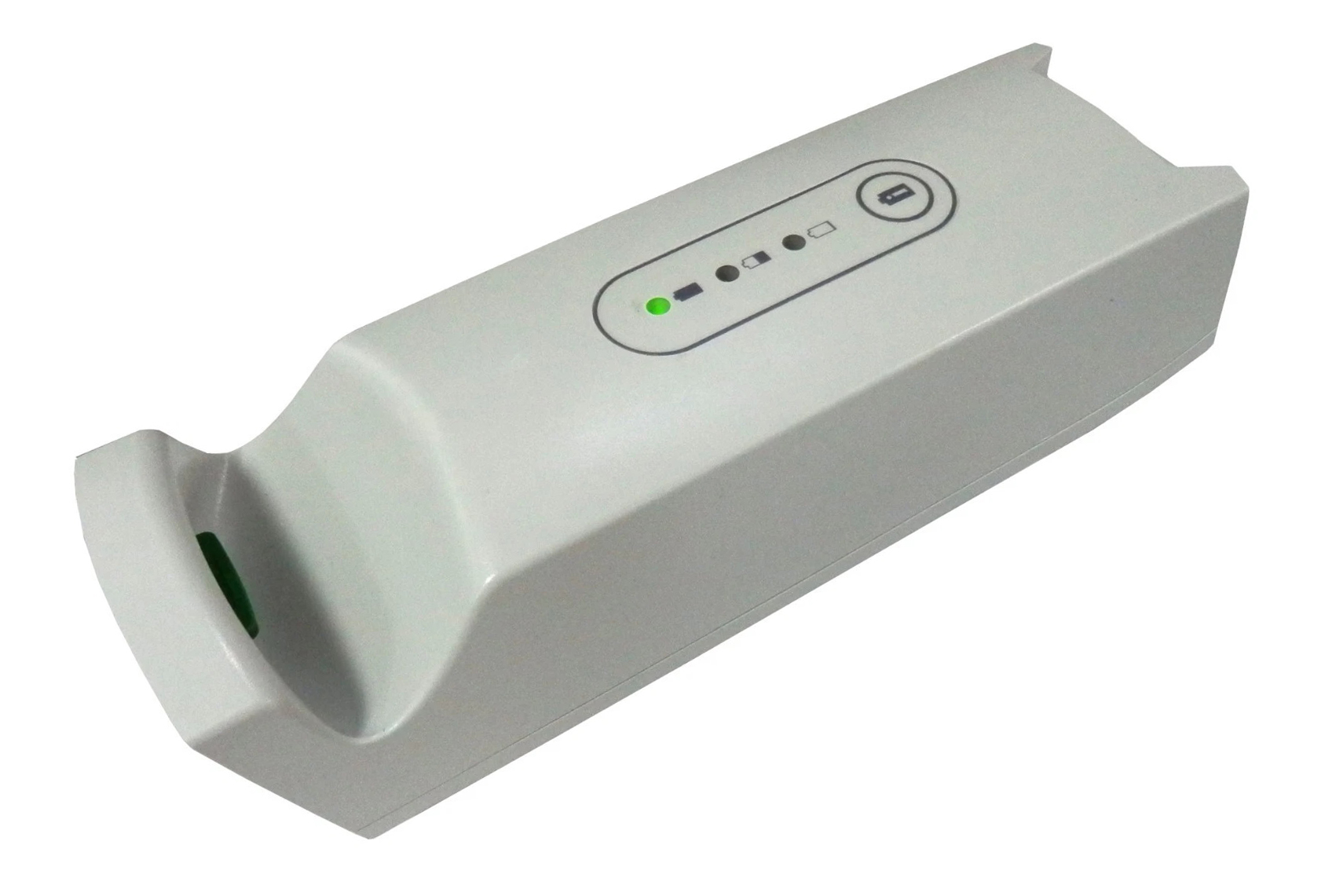

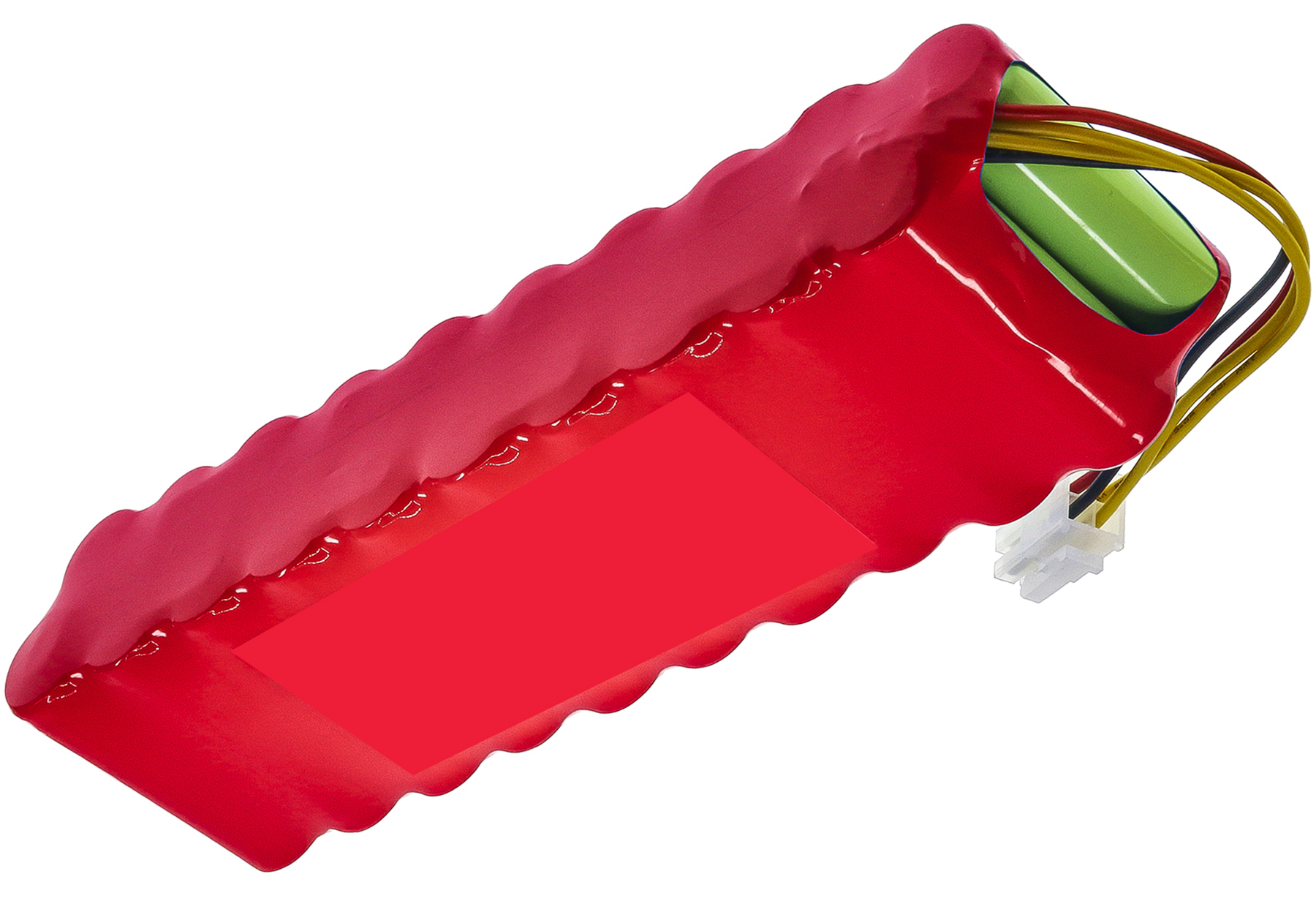

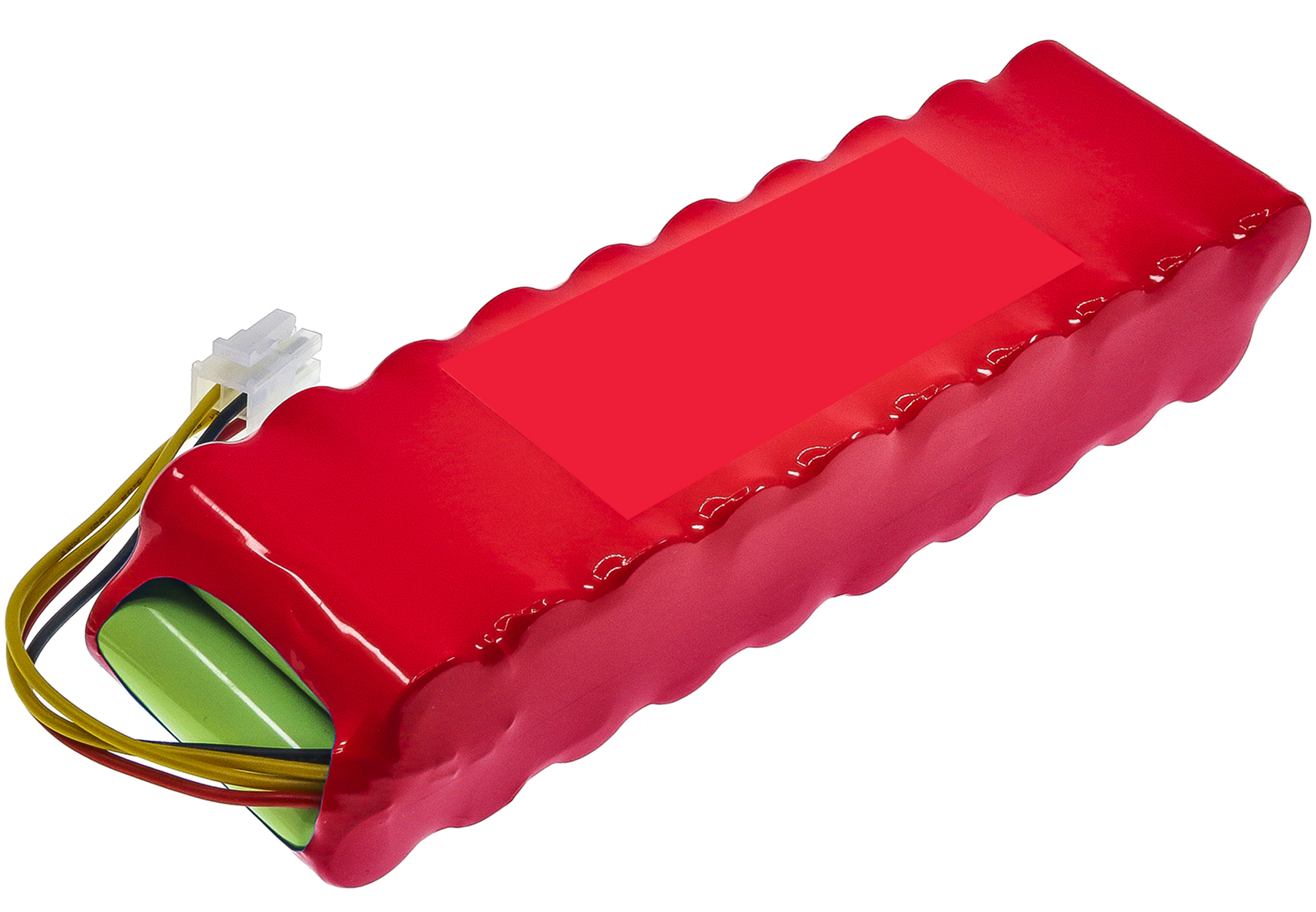

The Linak BAL20001-02, 20006107 & CSA07033 battery pack is used in portable hoists; it has a set of NI-MH cells in a pack that can be replaced with new ones when they start to degrade. Fitting the cells pack is quite easy, turn your Linak BAL20001-02, 20006107 & CSA07033 battery puck upside down and you will see the screws, while we have indeed seen some with philips screws, most seen to be a torx head. This is just a security screw tip, found now in most secuty screws driver sets, or easily obtained in many tool shops or online.
Just undo the eight screws of the Linak BAL20001-02, 20006107 & CSA07033 battery box, separate the base from the lid and replace the cell set.
Please fully charge your new Linak BAL20001-02, 20006107 & CSA07033 battery when it arrives and is first used. If it's not being used for extended periods, you should also recharge it every six weeks to keep the cells fresh.
Capacity = 2500mAh
Voltage = 24v
Chemistry - Ni-MH (will directly replace the Ni-CD versions where fitted, thereby reducing the memory effect).
The physical size of this compatible Linak BAL20001-02, 20006107 & CSA07033 NI-MH battery pack replacement is as follows:
Length = 176mm
Width = 51.8mm
Height = 31.75mm.
