Elite-Mobility Zeo-Sport battery set replacement.
Replacement Elite Mobility Zeo Sport battery set, rechargeable lightweight 4mph car boot scooter batteries at low price.
The Elite Mobility Zeo Sport is a lightweight scooter that is easy to separate into smaller sections to be transported in a motor car or other means of transport. It has a number of features such as LED lights, swivel seat and puncture proof tyres, with an upgrade to Pneumatic available from new. It is quoted as having a range of up to sixteen miles with the standard 20ah batteries fitted from new. Our replacement is 22ah, so 10% more miles should be achievable in ideal conditions.

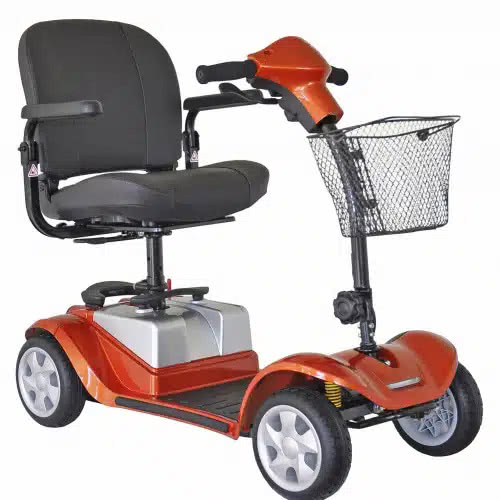

There is a picture on the page of the scooter, might be an idea to confirm yours looks like this as there is also a lighter version that takes smaller batteries, there should be a link to that page in the alternatives tab if it's what you have.
Zeo Sport battery care
Your new batteries will arrive with a good charge in them. But with all rechargeable batteries, you should put them on the charger when they arrive, even if it is just to top up the energy. Charge them after every use. When completed remove it from the charger, overnight is fine. If they are not being used, you should recharge them every four weeks to maintain healthy batteries.
These batteries are sealed lead acid AGM, VRLA, they need no mainatenance except fo course charging as meantioned above.
Chaning the batteries is easy, just remove the battery box from the scooter, turn it upside down on something to protect the plastic from scrathing. Undo the screws, turn it back and lift off the lid. The only tools you need is a long philips screwdriver, well with the capabilities of most people. There are only two cables on each battery, but change one at a time to minimise the posibility of making a mistake.
Voltage: 24v (two batteries 12v each)
Capacity: 22ah @20hr
Chemistry: VRLA, AGM, sealed lead
The physical size of each battery in this set of two for the Zeo Sport scooter is:
Length: 181mm or 7.12-inches
Width: 76mm or 2.99-inches
Height: 167mm 6.57-inches
There may also be upgrade avaialable, if so it will be in the easy upgrade drop down meanu above.
